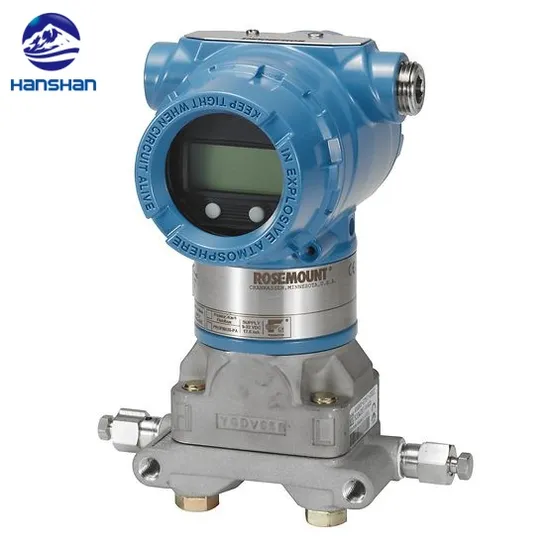

Rosemount 3051 Coplanar Differential Submersible Remote Control Graphical Smart Display Pressure Transmitter for Liquid Gas Steam with Enhanced Data Analysis

Product Description

The industry-proven Rosemount 3051 with patented Coplanar technology allows for direct mounting in multiple measurement applications. 10-year stability and 150:1 rangedown produce reliable measurements and wide application flexibility. Available with a graphical, back-lit display, Bluetooth® connectivity, Flow and Level specific configuration and enhanced software capabilities designed to access the data you need faster than ever before.Warranty
Up to 5-year limited warranty
Rangedown
Up to 150:1
Communication Protocol
4-20 MA HART®, WirelessHART®, FOUNDATION™ fieldbus, PROFIBUS® PA, 1-5 V Low Power HART®
Measurement Range
Up to 2000 psi (137,89 bar) differentialUp to 2000 psig (137,89 bar) gageUp to 4000 psia (275,79 bar) absolute
Process Wetted Material
316L SST, Alloy C-276, Alloy 400, Tantalum, Gold-plated 316L SST, Gold-plated Alloy 400
Diagnostics
Basic Diagnostics, Process Alerts, Loop Integrity Diagnostics, Plugged Impulse Line Diagnostics
Certifications/Approvals
SIL 2/3 certified to IEC 61508 by an independent 3rd party, NSF, NACE®, hazardous location, see full specs for complete list of certifications
Wireless Update Rate
1 sec. to 60 min., user selectable
Power Module Life
Up to 10-year life, field replaceable (order separately)
Wireless Range
Internal antenna (225 m)FeaturesPatented Rosemount Coplanar technology offers optimized performance as a pressure, Differential Pressure Flow or Differential Pressure Level solutionApplication specific configuration allows you to transform your pressure transmitter into a flow meter with a totalizer or a level transmitter with volume calculationsComplete pressure, level, or flow assemblies are leak-tested and calibrated to reduce leak points up to 70% and simplify installation10-year installed stability and 150:1 rangedown produce reliable measurements and wide application flexibilityBluetooth® wireless connectivity unlocks a far simpler process to perform maintenance and service tasks without the need for a physical connection or separate configuration toolThe graphical, back-lit display allows for easy operation in 8 different languages in all lighting conditionsLoop Integrity and Plugged Impulse Line diagnostics detect electrical loop issues and plugged impulse piping before it impacts the quality of the process for increased safety and reduced downtimeQuick service buttons offer built-in configuration buttons for streamlined commissioningSIL 2/3 certified to IEC 61508 (via 3rd party) and prior-use certificate of FMEDA data for safety installationsWireless FeaturesWirelessHART® technology is secure and cost-effective and delivers >99% data reliabilitySmartPower™ module provides up to 10-year maintenance-free operation and field replacement without transmitter removalEasy installation enables quick instrumentation of measurement points without the cost of wiring
Rosemount 3051C Coplanar Pressure Transmitter Ordering Information

Model	Transmitter type
3051C	Coplanar pressure transmitter
Measurement type
D	Differential
G	Gage
A	Absolute
Pressurerange
	Differential	Gage	Absolute
	(Rosemount 3051CD)	(Rosemount 3051CG)	(Rosemount 3051CA)
1	-25 to 25 in H2O	-25 to 25 in H2O	0 to 30 psia
			(0 to 2,06bar)
2	-250 to 250 in H2O	-250 to 250 in H2O	0 to 150 psia
			(0to10,34bar)
3	-1000 to 1000 in H2O	-393 to 1000 in H2O	0 to 800 psia
			(0 to 55,15bar)
4	-300 to 300 psi	-14.2 to 300 psi	0 to 4000 psia
			(0 to 275,79 bar)
5	-2000 to 2000 psi	-14.2 to 2000 psi	N/A
0	-3 to 3 inH2O	N/A	N/A
Transmitter output
A	4-20mA with digital signal based on HART®Protocol
F	FOUNDATION™ Fieldbus Protocol
W	PROFIBUS® PAProtocol
X	Wireless(requires wireless options and engineered polymer housing)
M	Low-power,1-5Vdc with digital signal based on HART Protocol
Materialsofconstruction
	Processflangetype	Flangematerial	Drain/vent
2	Coplanar	Stainlesssteel(SST)	SST
3	Coplanar	CastC-276	AlloyC-276
4	Coplanar	Alloy400	Alloy400/K-500
5	Coplanar	Platedcarbonsteel(CS)	SST
7	Coplanar	SST	AlloyC-276
8	Coplanar	PlatedCS	AlloyC-276
0	Alternateprocessconnection
Isolatingdiaphragm
2	316LSST
3	AlloyC-276
4	Alloy400
5	Tantalum(availableonRosemount3051CDandCG,ranges2-5only;notavailableonRosemount3051CA)
6	Gold-platedalloy400(useincombinationwithO-ringoptioncodeB)
7	Gold-plated316SST
O-ring
A	Glass-filledPTFE
B	Graphite-filledPTFE
Sensorfillfluid
1	Silicone
2	Inert(differentialandgageonly)
Housingmaterial			Conduitentrysize
A	Aluminum		1/2-14NPT
B	Aluminum		M20x1.5
E	Aluminum,ultralowcopper		1/2-14NPT
F	Aluminum,ultralowcopper		M20x1.5
J	SST		1/2-14NPT
K	SST		M20x1.5
P	Engineeredpolymer		Noconduitentries
D	Aluminum		G1/2
M	SST		G1/2

DimensionRosemount 3051C Exploded View
