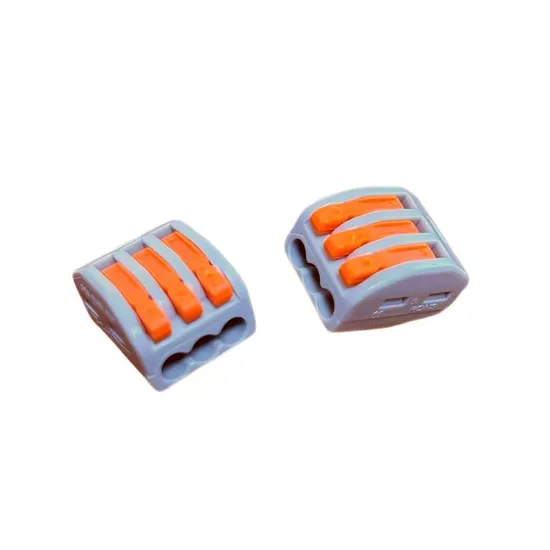

3 Pin Fast Wiring Connector Toolless Cable Connector Lighting Connector

Product Description

Product Description 3 Pin Fast Wiring Connector Toolless Cable Connector Lighting Connector
Cable fast toolless connecting, 250V, 32A, wire cut range 0.08mm2 to 2.5mm2 AWG18-AWG14, wire connection range 0.08mm2 to 4mm2 AWG28-AWG12.
Detailed Photos Product Parameters

Wire cut ragne (mm2)	0.08-2,5 mm2 AWG18-AWG14
The connection method	CAGE CLAMP CONNECTION
Wire connection range (mm2)	0.08-4 mm2 AWG28-AWG12
Rated voltage	400V
Withstand the instantaneous peak voltage	4 KV
Rated Current	32A
Contact Resistance	≤ 0.015 Ohm
Insulation Resistance	≥ 1000 mOhm
Wiriing Type	Side entry
Color	Grey, Orange
The number of connected wires	3
Highly	14.5mm
Thickness	17mm
Width	20.5 mm
Minimum stripping length	9mm
Maximum stripping length	10mm

Certifications ISO, CE RoHS
Packaging & Shipping Packaging: Standard Export Carton, 5000 PCS each carton.
Shipping: By Sea, By Air , By Train and Express

Our Advantages a. Has its own production equipment,own mold development tooling workshop and own testing lab facilities,
We have good capacity of production.
b. Good service, high quality and cheap price.
c. Fast delivery time.
d. New design Accepted: As your requirement.

FAQ Q1: How to ensure the quality of Wiring Connector ? A: Quality is our company's soul and culture. We have our own QC control department, the products will be 100% strict inspection and testing before shipment. And we also have got many certifications such as ISO, CE, RoHS and so on to ensure the quality of our products.Q2: Are free samples available from you? A: Yes, we are always happy to offer the free samples for all of our customers' projects provided.Q3: How long is your delivery time? A: Generally it is about 15 days if the goods are not in stock. It is also according to order quantity.Q4:What's your shipping way?
A: We can support all different kinds of shipping way as following: By Express,Like Fedex,DHL,UPS,TNT and etc. By Air,need to know the destination airport. By Sea,need to know the name of the port of destination. Other delivery methods are available upon request from clients.
