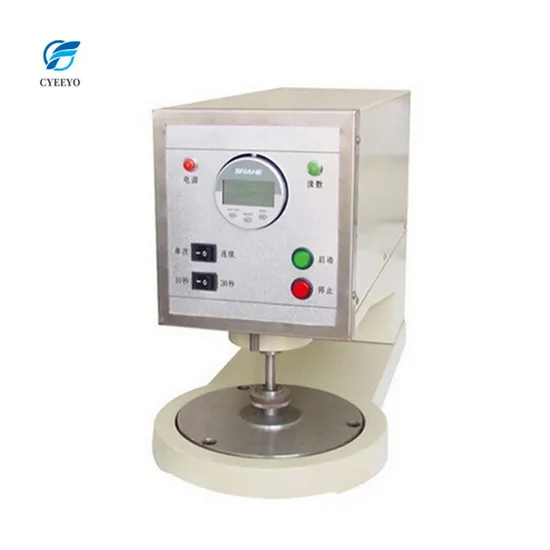

ISO5084 ISO9073 ASTM D1777 Fabric Thickness Meter
| US$1,100.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CY-749
Automatic Grade
Automatic
Appearance Quality Testing Machine Type
Textil Tabric Thickness Tester
Fabric Style Testing Machine Type
Textil Tabric Thickness Tester
Technological Characteristic Testing Machine Type
Textil Tabric Thickness Tester
Textile Fabric Testing Machine Type
Fabric Thickness Gauge
Universal Textile Testing Machine Type
Textil Tabric Thickness Tester
Textile Simulated Environmental Testing Machine Type
Textil Tabric Thickness Tester
Certification
CE, ISO9001: 2000
Condition
New
After-sales Service
Lifelong
Thickness Test Range
0.01~10mm LCD
Min. Division Value
0.01mm( 0.001mm Optional)
Pressure Time
10s 30s
Power Source a
AC220V 50Hz
Transport Package
Plywood
Specification
75cm*65cm*70cm
Trademark
CYEEYO
Origin
Shan Dong
HS Code
9027500090
Production Capacity
100
Packaging & Delivery
Package Size
69.00cm * 59.00cm * 165.00cm
Package Gross Weight
69.000kg
Product Description
ISO5084 ISO9073 ASTM D1777 Fabric Thickness Meter Used for test of machine knitting fabrics.Standard:
GB/T3820;FZ/T60004;FZ/T01003;ISO5084;ISO9073.2;ASTM D1777
Technical Data:
1.Thickness test range:0.01~10mm,LCD
2.Min. division value:0.01mm( 0.001mm optional)
3. Presser foot Dia:Φ11.28,Φ50.46,Φ56.42,Φ112.84mm 4gears
(100 mm2,2000 mm2,2500 mm2 and 10000 mm2)(Optional press
foot can be customized)
4.Pressure Weights:50cN*2pcs,100cN*2pcs,200cN*1pc
(Optional weights can be customized)
5.Pressure time:10S,30S 6.Dimension:410×160×300mm(L×W×H)
7.Weight:25kg
8.Power source:Ac220V 50Hz
| Used for test of machine knitting fabrics. Standard: GB/T3820;FZ/T60004;FZ/T01003;ISO5084;ISO9073.2;ASTM D1777 Technical Data: 1.Thickness test range:0.01~10mm,LCD 2.Min. division value:0.01mm( 0.001mm optional) 3. Presser foot Dia:Φ11.28,Φ50.46,Φ56.42,Φ112.84mm 4gears (100 mm2,2000 mm2,2500 mm2 and 10000 mm2)(Optional press foot can be customized) 4.Pressure Weights:50cN*2pcs,100cN*2pcs,200cN*1pc (Optional weights can be customized) 5.Pressure time:10S,30S |
Used for test of machine knitting fabrics.
Standard:
GB/T3820;FZ/T60004;FZ/T01003;ISO5084;ISO9073.2;ASTM D1777
Technical Data:
1.Thickness test range:0.01~10mm,LCD
2.Min. division value:0.01mm( 0.001mm optional)
3. Presser foot Dia:Φ11.28,Φ50.46,Φ56.42,Φ112.84mm 4gears
(100 mm2,2000 mm2,2500 mm2 and 10000 mm2)(Optional press
foot can be customized)
4.Pressure Weights:50cN*2pcs,100cN*2pcs,200cN*1pc
(Optional weights can be customized)
5.Pressure time:10S,30S
