with Digital Readout Universal Manual Milling Machine

Product Description

Product Description

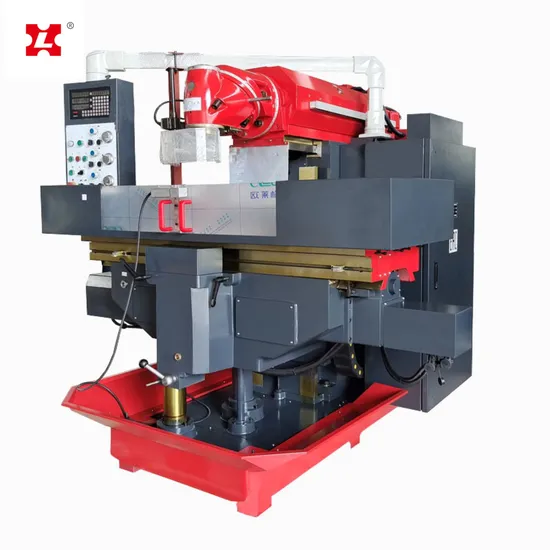

Universal Milling machine X5750
Detailed Photos

√ universal 360° swivel head can process any angle surface√ 27 speeds spindle, gearbox driven directly, wide speed range for powerful milling√ power driven sliding ram, very long travel in Y-axis
√ table feeding is driven by 3 independent servo motors, high accuracy, low noise, can achieve 3-axis synchronous feeding
√ 3-axis ball screws for good precise
√ 3-axis E-handwheels on control panel, manual feeding is easy and precise√ scientific circult design for easy maintenance
√ 500x2000 mm large work-table, long travel√ double-supporting-column design, 1800kg heavy load capacity
Product Parameters

Items	X5746	X5750	X5750A
Working area
Table size	1235x460mm	1600x500mm	2000x500mm
T-slot (width x No. x pitch)	18mmx5x80mm
Max. load of table	800kg	1800kg
Distance from spindle nose to table surface	58-508mm	50-550mm
Distance from spindle center line to column	20-670mm	45-745mm
Travel
Longitudinal travel of X axis	900mm	1200mm	1400mm
Cross travel of Y axis	650mm	700mm	700mm
Vertical travel of Z axis	450mm	500mm	500mm
Spindle
Swivel angle of milling head	360°	360°	360°
Spindle taper	ISO40	ISO50	ISO50
Vertical spindle speed /step	30-2050rpm
Vertical spindle speed step	27 steps
Main motor power	5.5kW	7.5kW
Feed
Feed speed and step of X/Y axis	10-1000mm/min	10-1000mm/min	10-1000mm/min
Feed speed and step of Z axis	6-640mm/min	5-500mm/min	5-500mm/min
Rapid traverse of X/Y axis	2200mm/min
Rapid traverse of Z axis	1100 mm/min
AC servo motor torque of X/Y/Z axis	X/Y:18Nm Z:27Nm
Others
Overall dimension	2527x2035x1990mm	2625x2460x2080mm	2625x2860x2080mm
Net weight	3600kg	4200kg	4500kg

Standard Configuration

No.	Item	Specification
1	lubrication system	-
2	water cooling system with spray nozzle	-
3	work lamp	-
4	draw bar	-
5	milling chuck set	ISO50 (or ISO40)
6	reducer sleeve	ISO50-Φ40 (or ISO40-Φ32)
7	tools & metallic tool box	-

Packaging & Shipping
Delivery time: generally 60 days production time after confirmation of order.
Packing type: machine is covered with damp-proof plastic film, then packed in plywood case (with steel pallet).
Delivery type: 20GP container is enough to load.

Company Profile
The company is located in the famous hometown of Mozi, Tengzhou City, Shandong Province. The company covers an area of more than 100,000 square meters, construction area of 70,000 square meters, set up Shandong Yourong Machine tool Co., LTD., Shandong XILI Machine tool Co., LTD., the existing employees 360 people, annual sales of 500 million yuan. Through cooperation with European companies, the company absorbed advanced technology, leading products to form CNC gantry machining center series, vertical, horizontal machining center series, turning and milling compound, CNC boring machine, CNC milling machine series, lifting table milling machine series, gantry milling machine series, slide milling machine series, and other brand specifications. About 70 percent of the products are exported to Germany, Poland, Italy, France, Russia, the United States and other European and American international markets. The company is a member of China Machine Tool Industry Association, passed the ISO9001 international standard quality system certification in 2002 and obtained the independent export right, passed the CE certification in 2010, was rated as the "National high-tech Enterprise" in Shandong Province in 2013, passed the Russian EAC certification in 2015. In April 2018, the International Madrid trademark was successfully registered, and more than 140 patents were authorized by the State Intellectual Property Office.

Certifications
Tengzhou Xili Machine Tool Co., Ltd. and Shandong Yourong(Xili) Machine Tool Co.,Ltd. is one of the leading manufacturers and exporters of machine tools in Shandong Province in China. We have more than 20 years manufacturer experience. Our main products include CNC Machining Center, CNC Gantry Milling Machine,vertical milling machines, horizontal milling machines, universal milling machines, planer type milling machines, ram type milling machines and vertical drilling machines with all 30 categories.
We are manufacturer not trading company.All our products passed CE, ISO9001. We also do OEM for Germany KNUTH, OPTIMUM, Austria Bernardo, America JET and so on. You can trust our quality and service.
Hope we can built long-term business relationship with you. FAQ
Q1: What is your product name?
R1: X5750 MILLING MACHINE.
Q2: Where is your factory?
R2: Our factory is located in Tengzhou, Shandong Province.
Q3:How many milling machines can be produced per month?
R3: We can produce more than 20 units per month.
Q4:Can you provide samples?
R4:Yes, we can provide you with samples, but you need to pay for the samples and freight first.
Q5:Can you use our brand?
R5:Yes, we can make it to order.

Q6:How can I trust your company?
R6:XILI Machine Tool has more than 20 years milling machine production history. covers an area of about 50000 square meters,with 20 million CNY fixed assets and more than 300 employees.
Q7:What is the payment term ?
R7: T/T, 30% advance payment before machine production, 70% balance payment before machine delivery.30% T/T advance payment, and 70% balance payment by Irrevocable LC at sight.
