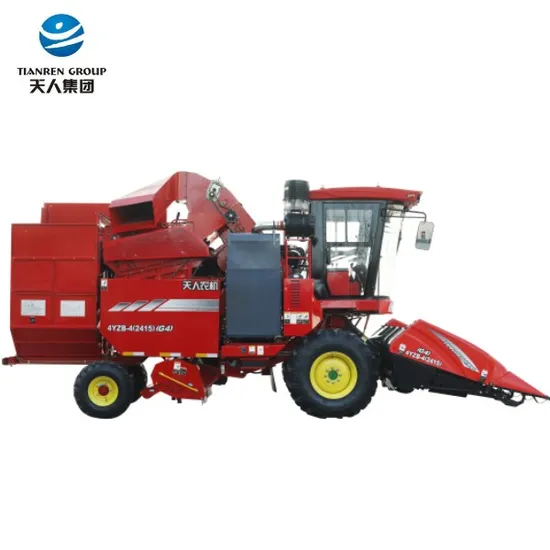

Tianren Multi-Function Maize Picker Corn Harvesting Machine Maize Harvester

Product Description

Tianren Combine Harvester Harvesting Machine Agricultural Machinery Corn Picker Harvester Product Description
The harvester can pick up corn ear, peeling and crush the corn plant in one operation,Hydrostatic drive, one-lever control, new frame design
Detailed Photos
Famous Engine
Equipped with Yuchai and other domestic famous and high-quality 220HP engines, the fuel consumption is low, the operation is stable, and the power reserve is sufficient and the service is Guaranteed.
Tianren corn head, domestic first-class technology
Unique small inclination design, small ground clearance, picking ear smoothly without grain loss, no corn ear cutting, low failure rate, fast harvesting speed, high efficiency. Good harvesting effect of lodging corn;
Independently developed peeling machine
The independently developed five-group roller peeling machine has a high peeling rate, less damage, and key parts adopt maintenance-free bearings with reliable and stable quality. The finger wheel adjustment of the peeling machine has been upgraded from screw adjustment to dual-handle adjustment, convenient and quick, greatly shortening the adjustment time;
Upgrade the air filtration system
The whole series of TR corn harvester equipped with Eurasia Huitong filter as standard, which has good dust and impurity filtration and separation effect, long service life of the filter element, no maintenance, a transparent ash tray for easier observation of ash discharge;
Hydrostatic drive, one-lever control, new frame design
Product Parameters
Tianren Combine Harvester Harvesting Machine Agricultural Machinery Corn Picker Harvester specification

Item	Unit	Data
Model	/	4YZ-4C/5C
Harvesting rows	row	4/5
Structural style	/	Self-propelled
Row space	mm	570
Harvesting row space range	mm	520-620
Overall size	mm	7900*2850*3650
Weight	kg	7900
Engine power	kw	161
Engine model	/	YUCHAI / YCA05220-T301
Engine rated rotation speed	r/min	2200
Oil consumption	L/ha	≤40
Working speed	Km/h	3-5
Working efficiency	Ha/h	0.4-0.8/0.6-1
Volume of tank	M3	3
Height of unloading	m	2.7
Minimum ground clearance	mm	290
Drive wheel	/	15-24
Guide wheel	/	10.0/75-15.3
Wheel base	mm	3286
Guide wheel track	mm	1750
Driving wheel track	mm	1650
Peeling machine	/	5 groups flat rubber roller,20 rollers
Straw chopper model	/	1JH-270
Structural style of chopper		Flail knife
Stubble height	mm	≤100
Corn seeds breakage rate	%	≤ 1%
Ear loss rate	%	≤ 2%
Harvester reliability	%	≥ 90%
Air conditioner optional	/	/

Company Profile
Shijiazhuang Tianren Agricultural Machinery Equipment Co.,Ltd Located is Gaocheng district of Shijiazhuang Hebei province, it is a modern agricultural machinery enterprises integrated R&D, manufacture, sales and service of corn harvester and corn head, currently, Tianren company has two branches factory, Covering 170000 square meters area and about 400 employee include more than 40 technical research and development personnel
As a professional manufacturer of corn harvesting equipment, after nearly 20 years of development, the company has more than 10 patented technologies, and passed the ISO quality management system certification level CE qualification certificate, and the formation of TR series of corn harvesting header from 3rows to 16rows and series of self-propelled corn combined harvesting machinery from 3rows to 8rows, to meet the needs of different customers. At the same time, it can also be customized according to different requirements of customers and compatible with many brands of harvester
The company has been adhering to the policy of providing customers with quality products and services, Sales network throughout the country more than 20 provinces, autonomous regions, products have been exported to Germany, Russia, Ukraine, Mexico, Belgium, Romania, Egypt and other countries and regions, much dealers and users love.
Certifications
Packaging & Shipping
After Sales Service
Tianren offers perfect facilities and comfortable environment and can provide training services to different users. The training sessions include product training, operation training, maintenance know-how, technical know- how training, standards, laws and regulations training and other training
Tianren can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advice, your machine service life can be significantly prolonged and sustained with high capacity.
On lines for video also can provide
