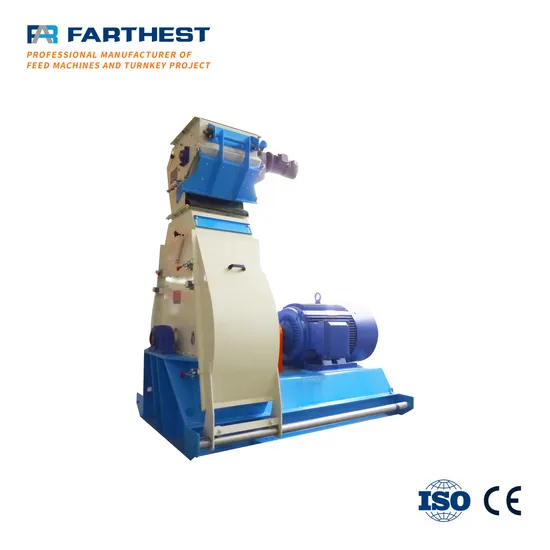

Farthest Soya Bean Miller Poultry Feed Soybean Crushing Machinery

Product Description

Product Description
Features
1. The grinding chamber is of tear circle shape, effectively eliminating the circular flow in the grinding process and getting higher capacity;
2. The bottom of grinding chamber is fitted with U-shape double grinding structure, further improving the capacity with evener particle size;
3. All of our rotors pass an accurate dynamic balancing test, resulting in low noise and smooth running.
4. Both coarse and fine grinding can be completed by adjusting the distance between the beater and the screen;
5. New type S-shape coupling directly connecting driving results in big offset travel and effectively avoid the heat from the bearing;
6. Beater blade edge is vacuum-welded by special alloy steel, resulting in long service life;
7. The imported components are used for key parts, resulting in long service life and low maintenance cost;
8. The moving full-wide operation door facilitates maintenance and replacing of beater;
9. It is widely used in various feed mills, oil plants, alcohol plants, citric acid plants, etc. Product Parameters

Main Technical Parameters:

Model Parameters	SFSP998-1	SFSP998-2	SFSP998-3	SFSP998-4
Dia. Of Rotor(mm)	1200	1200	1200	1200
Width Of Grinding Chamber (mm)	300	400	500	600
Speed Of Rotor(rpm)	1480	1480	1480	1480
Power(kw)	55/75	90/110	110/132/160	180/200/220
Output(t/h)	10-15	12-20	25-35	38-50

Re: The above indexes are those when meeting the following conditions: raw material: corn, moisture content not higher than 14%, density not lower than 0.72t/m3, screen: hole diameter ¢3mm, hole-opening rate not less than 33%.
Related Products
FAQ

1. Q: Are you a trading company or a manufacturer?
A: We are a manufacturer, which has almost 20 years of experience in this industry.

2. Q: How can I get to your company?
A: You can get a flight to Nanjing Airport. We are just about 40-50mins away from Nanjing Airport.

3. Q: How long is your guarantee?
A: One Year (Calculated from the equipment arrives the customer's side.). After this period we will definitely
still support you when needed. You will be welcome to contact us with any problem might experience.

4. Q: Will you send engineers to install the plant?
A: yes, but at an extra cost payable by the customer. Or you can get local contractors to do the
commissioning and we send one supervising engineer.
Packaging & Shipping

Exported Equipment
AR products have been exported to South Korea, Iraq, Denmark, Egypt, South Africa, Vietnam etc. The customers have been pleased with the products whatever on design or quality. We also get many new clients introduced by them. Our goal is to make each initial transaction into a continually beneficial and lasting business relationship.
Exhibition
Last year, we attended two big exhibitions, one was VIV China 2012, held in Beijing during 23rd- 25th Sep, 2012; another was The Tenth (2012)China Animal Husbandry Expo, held in Nanjing. We have completed several successful operations from the two exhibitions, and more importantly our company and products are well known by more customers. This year, we hope we could get create more mutually beneficial business relationships in The Eleventh(2013) China Animal Husbandry Expo, which will be held in Wuhan during 18th-20th May, 2013. Our tear circle hammer mill,pellet mill, mixer, crumbler will be showed on this exhibition.
Company Profile

CHANGZHOU FARTHEST MACHINERY CO., LTD is a comprehensive manufacturer of feed machinery, bio-energy machinery, organic fertilizer machinery and turn key projects. We are dedicated to service for domestic feed industry customers. FAR has worked in this field for almost 20 years and wins an outstanding reputation in feed machinery. Clients from home and abroad give a high praise to FAR products.
