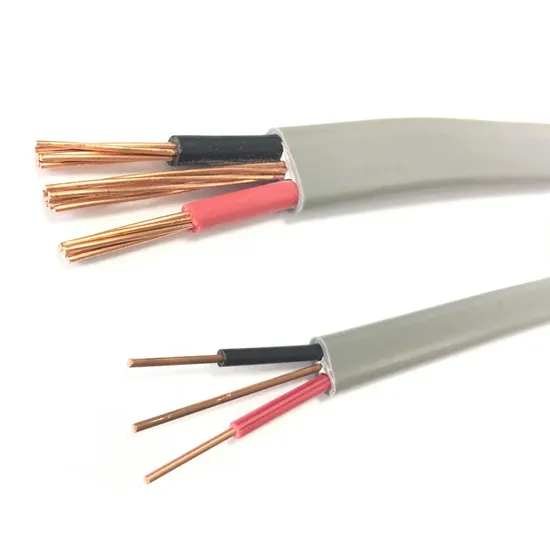

Twin with Earth TPS Electric Flat Cable Hot Wire 1.5mm PVC Copper Insulated Electric Wire Cable Copper Cable
Basic Info.
Model NO.
6242Y
Application
Building and House
Conductor Material
Copper
Sheath Material
PVC
Insulation Material
PVC
Material Shape
Flat Wire
Range of Application
Building and House
Certification
ISO9001, CE, CCC, RoHS, VDE
Brand
Qinshan
Insulation Color
Requirement
Voltage
300/500V
Temperature Range
-15 ~ +70
Name
Twin Flat Cable
Standard
BS6004
Transport Package
Roll Packing& Plastic Drum
Specification
1.0mm2 to 16mm2
Trademark
Qinshan
Origin
China
HS Code
8544492900
Production Capacity
600000000 Rolls /Year
Packaging & Delivery
Package Size
10.00cm * 10.00cm * 5.00cm
Package Gross Weight
0.500kg
Product Description
Twin with Earth TPS Electric Flat Cable Hot Wire 1.5mm PVC Copper Insulated
Construction :
1.Conductor: 6192Y/6242Y Bare copper wire(solid) class1
Bare copper multi wire(stranded) class2
2.Insulation:PVC Compound
4.Sheath: PVC Compound
3. Sheath Color:
Grey , Black , White
Techical Data :
Standard:BS6004
Fixed installed: -30ºC up to +70ºC
At short circuit of max.5s up to 160ºC
Nominal Voltage: 6192Y/6242Y 300/500V
Min inner bending radius:6D(D=Outdiameter)
Behaviour in fire:
Flame retardant cable acc.to IEC60332--1
Application:
Twin flat&Twin with earth ables 6192Y/6242Y is used fordomestic and light industrial wiring.it can be installed in dry or damp conditions clipped to surface,on trays or in free air where there is little risk of mechanical damage.Suitable for laying into trunking or conduit when mechanical protection isrequired.also suitable for embedded in plaster or laid in walls.
Specification Parameter :
| No.of cores x Nominal section area | Nominal Construction of conductor | Nominal Insulation thickness | Nominal Sheath thickness | Nominal Overall diameter | Nominal Cable weight | Max.Resistance of conductor at 20ºC |
| No.X mm² | No.X mm | mm | mm | mm | kg/km | <=(Ω/km) |
| 6192Y / 6193Y Twin flat BS6004 | ||||||
| 2x1.0 | 2X1.13 | 0,6 | 0,8 | 4.2x6.5 | 49 | 18,10 |
| 2x1.5 | 2X1.38 | 0,7 | 0,8 | 4.6x7.4 | 65 | 12,10 |
| 2x2.5 | 2X1.78 | 0,8 | 0,8 | 5.4x8.8 | 97 | 7,41 |
| 2x4.0 | 2X7/0.85 | 0,8 | 0,9 | 6.1x10.2 | 138 | 4,61 |
| 2x6.0 | 2X7/1.04 | 0,8 | 0,9 | 6.9x11.5 | 189 | 3,08 |
| 2x10.0 | 2X7/1.35 | 1,0 | 0,9 | 8.2x14.0 | 295 | 1,83 |
| 2 x 16.0 | 2X7/1.70 | 1,0 | 1,0 | 9.4x16.2 | 430 | 1,150 |
| 3x1.0 | 3X1.13 | 0,6 | 0,8 | 4.2x8.9 | 71 | 18,10 |
| 3x1.5 | 3X1.38 | 0,7 | 0,8 | 4.6x10.2 | 95 | 12,10 |
| 3x2.5 | 3X1.78 | 0,8 | 0,8 | 5.4x12.2 | 142 | 7,41 |
| 3x4.0 | 3X7/0.85 | 0,8 | 0,9 | 6.1x14.5 | 206 | 4,61 |
| 3x6.0 | 3X7/1.04 | 0,5 | 0,9 | 6.9x16.2 | 280 | 3,08 |
| 3x10.0 | 3X7/1.35 | 1,0 | 0,9 | 8.2x19.8 | 438 | 1,83 |
| 3 x 16.0 | 3X7/1.70 | 1,0 | 1,0 | 9.4x22.9 | 640 | 1,150 |
| 6242Y/Twin With Earth Cables | ||||||
| 2x1.0+1.0 | 2x1.13+1.13 | 0,6 | 0,8 | 4.2x7.6 | 63 | 18,10 |
| 2x1.5+1.0 | 2x1.38+1.13 | 0,7 | 0,9 | 4.6x8.5 | 70 | 12,10 |
| 2x2.5+1.5 | 2x1.78+1.38 | 0,8 | 1,0 | 5.4x10.2 | 119 | 7,41 |
| 2x4.0+1.5 | 2x7/0.85+1.38 | 0,8 | 1,0 | 6.1x11.6 | 162 | 4,61 |
| 2x6.0+2.5 | 2x7/1.04+1.78 | 0,8 | 1,1 | 6.9x13.3 | 227 | 3,08 |
| 2x10.0+4.0 | 2x7/1.35+7/0.85 | 1,0 | 1,2 | 8.2x16.5 | 355 | 1,83 |
| 2x16.0+6.0 | 2x7/1.70+7/1.04 | 1,0 | 1,3 | 9.4x19.2 | 517 | 1,150 |
