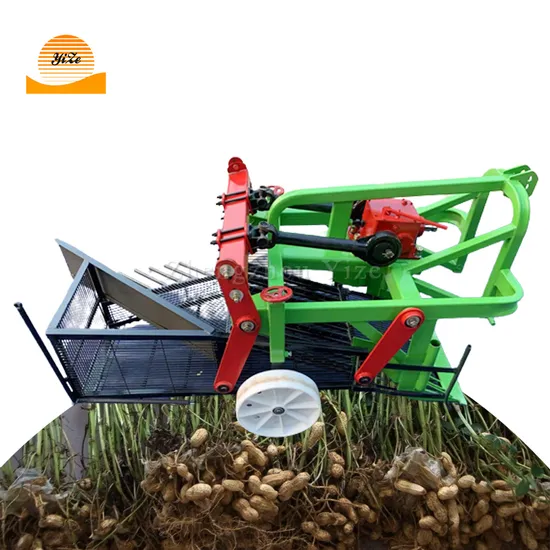

High Efficent New Design Combine Mini Groundnuts Peanut Root Crop Harvester Machine with Tractor

Product Description

High Efficent New Design Combine Mini Groundnuts Peanut Root Crop Harvester Machine With Tractor
Product Description
Peanut harvesting machine is a machine used for groundnut harvest, which can separate the peanuts growing in the soil from the soil. The peanut harvester completes peanut harvesting through the steps of digging, removing soil, and picking fruit. The problem of low labor efficiency is solved, and the peanut harvester can harvest 99% of the peanuts in the field.

Product name	Vibrating screen peanut harvester
Transmission mode	Belt transmission, transmission shaft transmission
Supporting power	17 horsepower and above diesel engine
Work efficiency	1300-2000 square meters/hour
Excavation depth	30cm
Applicable soil quality	Sandy, semi sandy

The peanut harvesting machine replaces the manual digging of peanut fruits, turns the peanuts out of the ground, and puts the dug-out peanut seedlings on the side of the machine, which is convenient to be pulled away directly by a car. The net recovery rate is greater than 99% and the peeling rate is less than 1%. After being processed by the peanut harvester, there are almost no peanuts in the world.
The peanut harvester needs to work with a 20-35 horsepower tractor. If you already have a tractor, you can directly use your own tractor. If not, we also have a matching tractor, you can choose to buy it. The row spacing of peanuts can be adjusted between 180-250mm. The working depth of the peanut harvester is 3-5cm. Applicable to one line and two lines. A peanut planter can be used in the peanut production industry after the peanuts are harvested if you can also use a peanut picking machine to pick the peanut fruit. This saves more time and effort.
Detailed Photos
Shovel bladeEffectively shovel peanuts at a certain depth to loosen the soil.
Transmission shaft
Drive shaft transmission, driving machine operation.
Barb Effectively transport peanut seedlings from front to back.

vibrating screen
The existence of peanut falling fruit is a major problem in peanut harvesting, and the installation of a vibrating screen effectively solves this problem. By using a vibrating screen to collect and store fallen fruits, the land after receiving can be kept extremely clean, without the need for secondary manual picking up of fallen fruits.
Maintenance of Peanut Machinery:
Good maintenance will make peanut machinery serve you for a longer period of time. If it is not maintained or even cherished, no matter how good the quality is, it will wear off and the service life will be greatly reduced. The following is the daily maintenance of peanut machinery: 1. Maintenance after shift operation. After each shift of the peanut harvester is completed, the soil on the harvester parts should be removed to prevent the machine from rusting, and then the hood should be opened to remove the weeds entangled on each component. 2. Maintenance after one week of use. Grease should be added to universal joints, bearings, etc. and other lubrication points should be inspected and replenished. Check the wear of the peanut harvester belt. If the wear is serious, replace it in time. 3. Maintenance after each quarterly operation. After all the work is completed every quarter, not only should all the machines be cleaned, but the V-belts should also be loosened. After checking and replacing the bearings in each running part, add enough butter. 4. Maintenance during storage. Choose a ventilated and shaded place, use bricks or other objects to pad the frame, keep the digging shovel and depth limiting wheel off the ground, and cover the peanut harvester with plastic sheeting. Application
Packaging & Shipping

Company Profile

FAQ

MOQ	Usually 1 set, or based your order, Preferential wholesale price.
Voltage	110V /220V /380V /415V, 50/60 HZ Single/Three phase , Customize the voltage according to your local voltage.
Guarantee	Quality guarantee term is for one year, During guarantee period, free technical support and free spare parts supply.
Payment term	T/T, Credit card, Western Union, RMB , Alipay, Wechat, Cash, E-checking, MoneyGram, L/C, etc.
Documents offer	By express:express waybillBy air:airway billBy sea:B/L, commercial invoice, packing list, sales contract, CO, FE, FTA or as your request.
How to install and maintain the machine	we can teach you install or maintain the machine by video, email ,pictures.....if large project , we can arrange our engineer help you to install or maintain it in your country. If you need spare parts, we can supply for free or cost price, you pay express cost.
Assignment of engineers and training	we can supply manual book, work video, install video, pictures first, we can also assign our engineers to go abroad for installing or training machines for our users.
