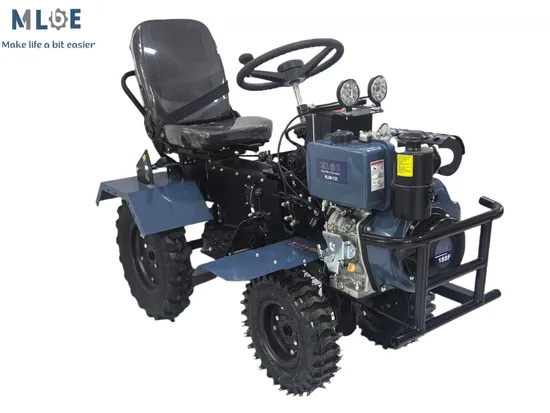

Mlbe Hot Selling Single Cylinder Vertical Four-Stroke 4X4 Mini Tractor

Product Description

Detailed information:
Basic Information:

S.N	ITEM		UNIT	SPECIFICATION
1	MODEL		\	ML4W-135DF
2	STRUCTURE		\	SEAT
	DRIVE		\	4×4
3	ENGINE	MODEL	\	192F
		STRUCTURE	\	gasioline,Single cylinder,vertical,four-stroke,direct injection,air-cooled
		RATED POWER	kW	6.7
		RATED REVOLUTION	r/min	3600
		STARTING SYSTEM	\	MANUAL/ELECTRIC START
		OIL TYPE	\	GASOLINE
4	MACHIANE SIZE(L×W×H)		mm	1680×970×1200
5	STANDARD ACCESSORIES		\	40PCS DRYLAND BLADES(4PCS *5 GROUPS *2 SIDES)
				400-8 wheels (pair)
				500-12 wheels (weight bearing type) (pair)
				500-12 iron wheels(pair)
6	N.W		kg	248
7	G.W		kg	275
8	PACKAGE		mm	1580×770×880
9	ROTARY BLADES		\	DRYLAND BLADES
10	DRIVE TYPE		\	FULL-GEAR DRIVE
11	TURNING SYSTEM		\	BEND AND TURN
12	CONNECTING SYSTEM		\	UNIVERSAL
13	REAR GEARBOX	REVOLUTION -WALKING	r/min	3 GEAR:106.6 2 GEAR: 62.5 1 GEAR: 15.6 REVERSE GEAR:22.3
		REVOLUTION -ROTARY WORKING	r/min	3 GEAR: 26.8 2 GEAR: 15.7 1 GEAR: 3.9 REVERSE GEAR:5.6
		WHEEL MODEL	\	500-12
		SPEED -WALKING	km/h	3 GEAR:11.05 2 GEAR: 6.48 1 GEAR: 1.62 REVERSE GEAR:2.31
		OIL CAPACITY	L	2.2
14	FRONT GEARBOX	REVOLUTION	r/min	3 GEAR:145.2 2 GEAR: 85.1 1 GEAR: 21.3 REVERSE GEAR:30.4
		WHEEL MODEL	\	400-8
		SPEED	km/h	3 GEAR:11.05 2 GEAR: 6.48 1 GEAR: 1.62 REVERSE GEAR:2.31
		OIL CAPACITY	L	2.2
15	ROTARY BLADES	REVOLUTION	r/min	3 GEAR:145.2 2 GEAR: 85.1 1 GEAR: 21.3 REVERSE GEAR:30.4
		MAX. DIAMETER	mm	180
		QTY OF BLADES	PCS	40
16	WORKING WIDTH		mm	1350
17	WORKING DEPTH		mm	100-200
18	CLUTCH TYPE		\	FRICTION DISC TYPE
19	CLUTCH CONDITION		\	OPEN
20	ROTATY TYPE		\	FRONT ROTARY
21	PRODUCTIVITY		hm2/h.m	≥0.04
22	FUEL CONSUMPTION		kg/hm2	≤30
