PE PP HDPE Rigid Hard Flakes Plastic Pelletizing Line Side Force Feeder Granulation Machine
| US$12,000.00-100,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
RT
Material Processed
Film
Plastic Type
HDPE LDPE LLDPE PP Film
Screw
Single-Screw
Automation
Automation
Computerized
Customized
Certification
ISO9001:2008, CE
Color
Could Be Customized
Type of Extruder
Deagassing Tyep
After-Sale Service
Engineers Available to Service Machinery Overseas
Stage
Doulbe or Single or Multi
Feeder Type
Force Feeder or Compactor
Transport Package
Wrap Film
Specification
TSSJ100~200 THSJ65~220 TCSJ85~180 TCDJ85~180
Trademark
RETECH
Origin
China
HS Code
8477201000
Production Capacity
300~3000kg/H
Packaging & Delivery
Package Size
4200.00cm * 600.00cm * 500.00cm
Package Gross Weight
12000.000kg
Product Description

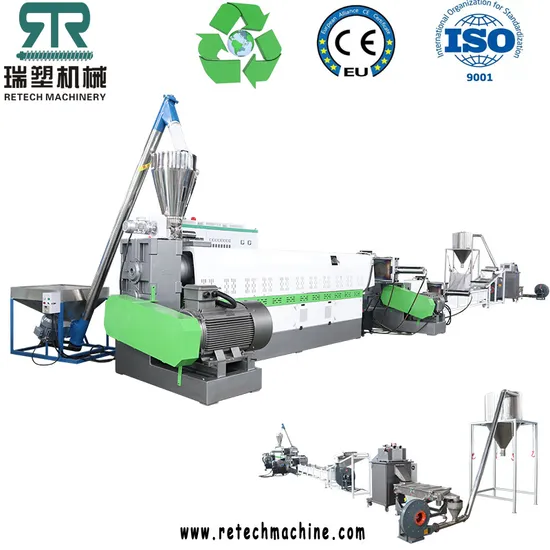

HDPE PP Rigid Hard Plastic Flake Pelletizing Machine Side Force Feeder Granulator LineProduct Description
1. Introduction and Application:
1 Applicable plastic materials: PE, HDPE, LDPE, PP, etc.
2 Material shapes: rigid flakes, agglomerated film, soft films
3 Note: depending on different material properties, various downstream equipments are needed.
4 Better degassing and better quality with two stages
2.Features of Virgin Clean PE LDPE HDPE Film Two Double Stage Recycling Granulating Pelletizing Line:
1 Remove the volatile material such as air, water or chemical material by strong vacuum degassing system
2 Twice filtering, guarantee the purity of the pellets
3 Complete auxiliary equipments, guarantee the machine running for 24 hours without stopping.
4 The moisture of pellets: below 1%
Features
1. Ration feeder-Feeding automatically
2. Main extruder with degassing
3. Filter screen
4. Granules cutter
5.Electric panel
Detailed Photos
Product Parameters
| Model | Screw Diameter(mm) | Main Motor Power(kw) | Side Force Feeder Motor Power(kw) | Capacity(kg/h) |
| TCSJ100/30 | Φ100 | 55-75 | 5.5 | 150-200 |
| TCSJ120/30 | Φ120 | 75-90 | 7.5-11 | 200-350 |
| TCSJ130/30 | Φ130 | 90-110 | 11 | 300-400 |
| TCSJ150/28 | Φ150 | 132-160 | 15 | 350-500 |
| TCSJ160/28 | Φ160 | 160-185 | 15 | 450-550 |
| TCSJ180/25 | Φ180 | 185-200 | 18.5 | 600-800 |
| TCSJ200/25 | Φ200 | 200-250 | 22 | 800-1000 |
