Factory Direct Sale Quilt Filling Machine Duvet Filling Machine with Fiber

Product Description

Product Description·Adopt high-precision sensors, the accuracy value is adjustable within 0.1.03 gram; adopt super large hopper, the single weighing range is about 5-90 grams, which solves the problem that filling large grams of products in the home textile industry has been unable to accurately quantify. ·Over sized storage box can store 15-40KG materials at one time, saving the feeding time. Optional unmanned feeding system,automatically feed when there is no material in the storage box, and automatically stop when there is material. ·It solves the problem of multi-purpose of a single machine, and can be compatible with filling 0.8D-15D high fiber cotton, down and feather pieces (10-80MM in length), flexible latex particles, high elastic sponge scraps, wormwood, as well as the mixture involved, fully improving the cost performance of the equipment. ·Modular configuration of filling nozzle: φ25/32*L 720mm,φ38mm*L350mm, can be replaced without any tools according to the product size. ·This machine can be linked with streamline equipment such as bale-opener, cotton-opener, mixing machine, and can realize production automation. ·Adopt PLC programmable controller and high-precision weighing module, achieving more accurate and efficient production capacity.

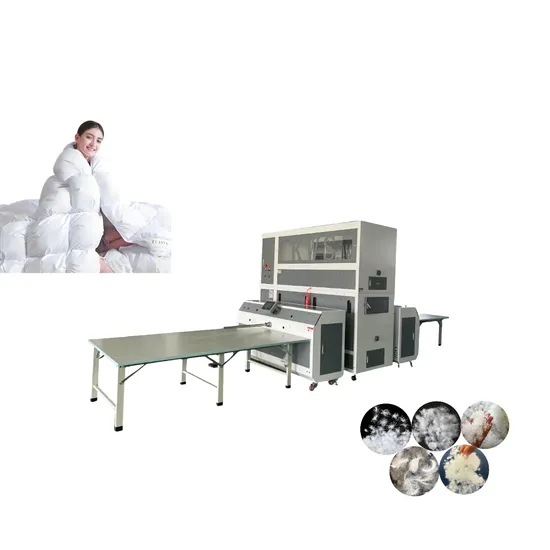

Automatic goose down quilt filling machine KWS688-2C
Overall Dimension	6500*2300*2230mm (15m2)	Packing size/Gross Weight	6.8CBM/1100KG
Voltage/Power	220V 50HZ/2.8KW	Accuracy Class	Down±0.1g /Fiber ±0.3g
Storage box Size	2275*900*2230mm	Storage Capacity	25-45kg
Weighing machine Size/2Sets	1800*580*1000mm	Filling Range	5-90g(Single weighing range)
Dedicated Workbench/2pcs	2000*1200*650mm	Filling Port	Two Heads (8 Scales)
Weight	860kg	Filling Port Size/2sets	Φ25/32mm×Length750mm
Display Interface	10"HD Touch Screen	Filling Speed	20-60PCS/min(fabric piece≤25g)
Auto Feeding System	Including feeding fan	Heavy Duty Allocation Deduction	YES
USB Data Import Function	YES	Air Pressure	0.6-0.8Mpa (Need air compressor≥11kw,not included )

Filling meterial:
·Applicable materials: 0.8D-15D high fiber cotton, wool and cotton (length 10-80mm) \elastic latex particles, high elastic broken sponge particles, feather, cashmere, wool and the mixture involved.Application:· Applicable products of this machine: Goose down quilts, pillows, cushions, outdoor sleeping bags and outdoor thermal products.Product Details Company Profile
Customer Visit
Certifications
Customer Feedback
Packaging & Shipping
FAQQ1.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price will be.
Q2.Should the customer pay the delivery fee,How much is it?
For the delivery fee,many samples are be requested to be sent,so we must get delivery fee.
If you tell me to use the appointed Express,you will give me your express account or you will pay according to the Express.
If you do not request,I will choose a cheap one in China.
Q3.How about the after sale service?
1)We will always keep the quality the same as the buyer's samples and if there is something with the quality,we will make compensation for our coustomers.
2)We will suggest our packing and take charge in our packing,we will keep the goods safe in the delivery.
3)We will trace the goods from the production to selling,we will solve the problems in the selling for our coustomers.
Q4.When can I get a price?
We usually quote within 24hours after we get your inquiry.
Q5: Are you a trade company or manufacturer?
We are a professional manufacturer with our own factory.
