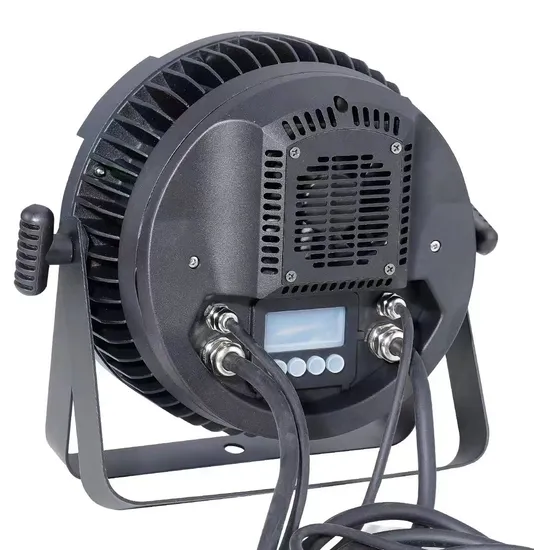

Slim LED PAR 12*10W RGBW (waterproof)
| US$59.00-89.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LED 1015
Power
216W/324W
Waterproof
Waterproof
IP Rating
IP65
Life
80000h
Electric Current Type
AC
Input Voltage
110-220V
Diffuser
Tempered Glass
Shell Material
Aluminium Alloy
LED Chips
CREE
Certification
CE
Color
Rgbwauv 6-in-1
Transport Package
Carton/Flycase
Specification
Dimensions: 31*31*37cm Weight: 8.50KGS
Trademark
MSLighting
Origin
Guangzhou, China
HS Code
94054090
Production Capacity
500PCS/Week
Product Description
LED Disco Light, DMX LED Light, LED Effect Light, LED Stage Light,This light adopts in 12*12 RGBW 4N1 Multi-Color LED Light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.
The cover is aluminum alloy with excellent polishing. The nice design is good for dispelling heat very well and long life. Though distance from the light fixture to the controller is 20m, the effect is still very good. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
| Specification: | |||
| Model | LED 1015 | ||
| NO. of LED | 12*12W RGBW 4-IN-1 MULTI-CHIP LED LAMP | ||
| Power Consumption | 200W | ||
| DMX Channel | 4CH/7CH | ||
| Control panel | Digital 4 characters alphanumeric | ||
| Housing Color | Black/White | ||
| Operating voltage | 100-230V AC | ||
| Control Modes | Direct DMX 512, Master/slave. Stand alone. Sound Activity | ||
| Connector | 3-PinXLR (In and Out) | ||
| LED Life Time | 80000-100, 000 hours | ||
| Beam Angle | 25° /30° | ||
| Light Projecting Distance | 50-150M | ||
| IP Rating | Waterproof IP 65 outdoor, Indoor | ||
| Operating Temperature | -20° c-+45° c | ||
| Packing Dimension | 31*31*37cm/ 62*62*39cm (4pcs) | ||
| Gross Weight | 8.50KGS /32.00kg(4pcs) | ||
| Compatibility: | |||
| 1. Color Range: 16.7 million additive RGBWAUV colors; continuously variable intensity (256× 256× 256=16777216) | |||
| 2. Dimming 0-100%with regulated constant color control | |||
| 3. Strobe: 10 Flashed per second (any color) | |||
| 4. Function: it is max mix color, color change, flash, speed/luminance the adjustable | |||
| 5. 9channel Mode and 6channel Mode would change each other in every light | |||
| 6.7CH Mode DMX Value | CH 1_General dimmer (1-255, from dart to light) | ||
| CH 2_Red (1-255, Dimmer, from dart to light) | |||
| CH 3_Green (1-255, Dimmer, from dart to light) | |||
| CH 4_Blue (1-255, Dimmer, from dart to light) | |||
| CH 5_White (1-255, Dimmer, from dart to light) | |||
| CH 6_Strobe & Color change/ color gradual change open | |||
| CH 7_Strobe & Color change& color gradual change' s speed adjustment (1-255, Speed adjustment, from slow to fast) | |||
| 7.4CH Mode DMX Value | CH 1_Red (1-255, Dimmer, from dart to light) | ||
| CH 2_Green (1-255, Dimmer, from dart to light) | |||
| CH 3_Blue (1-255, Dimmer, from dart to light) | |||
| CH 4_White/Amber (1-255, Dimmer, from dart to light) | |||
| 8. Control modes | 0: sound activity mode | ||
| 1. DMX control mode | |||
| 2. Adjusting the color manual | |||
| 3. Adjusting the brightness manual | |||
| 4. Adjusting the strobe manual | |||
| 5. Adjusting the strobe speed manual | |||
| 6. Master-slave control mode, as the master | |||
| 7. Sound activity synchronization mode | |||
| 8. Adjustingcolor' s gradual change manual | |||
| 9. Adjustinggradual change' s speed | |||
