Professional High Speed Automatic Online Inspection and Rewinding Machine

Product Description

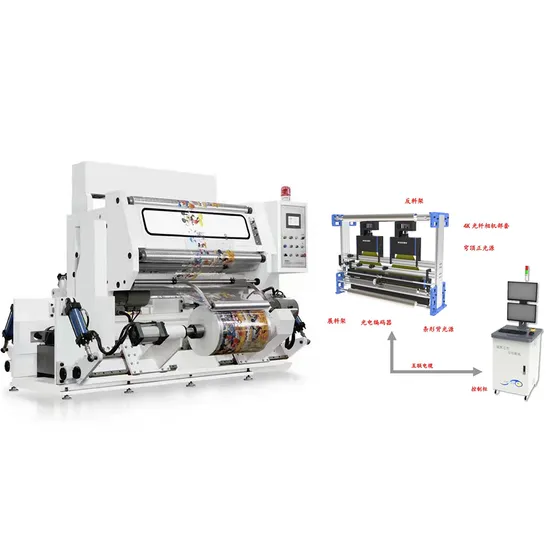

FHYB-1300 High-Speed PET Inspecting and Rewinding Machine Usage characteristic
This machine is suitable for inspecting many kinds of roll material, such as BOPP, PET, PVC, CPP, PE, Plastic films etc.
FEATURE 1.With imported PLC to control, touch screen to operate.
2.Shaft less pneumatic unwinding device, hydraulic lifting, easier to change material.
3.Inspecting system is adopted fully automatic image-scanning device, can automatic check out defect. 4.film absorbing type material connecting table.
4.Unwinder is adopted EPC.
5.System with many functions, such as meter counting, roll material diameter counting, automatic stop of material breaking, etc. TECHNICAL DATA

Model	FHYB-1300
Suitable material	Plastic film & laminated plastic film 12-180mic PE,PVC 40-150 mic
Web width	400-1300 mm
Max. diameter of unwinder	Φ800 mm
Max. diameter of rewinder	Φ800 mm
Max. width of raw material	1300 mm
Maximum mechanical speed	420m/min
Inspecting speed	30-400 m/min
Diameter of paper tube	3″(internal diameter φ76mm external diameter φ92mm)
Power of unwinding motor	4 kw
Power of winding motor	4 kw
Power of traction motor	4 kw
Total power	13 kw
Weight	3500 kg
Dimension(LxWxH)	3800x3400x2150 mm

Machine description Unwind part
Structure shaftless pneumatic cone top discharge rack, discharge rack can be hydraulic lift, and can be wide and narrow LPC lateral correction mechanism Tension automatic control Motor take the initiative to unwind, with winding function Specifications Roll width range 400 ~ 1300 mm Unwinding diameter (Max) φ800 mm unwinding motor power 4kw LPC lateral correction accuracy ± 0.4 mm Features shaft-free cone-shaped top-release rack, and hydraulic lift, up and down fast and convenient. With LPC to ensure rewinding neatly Tension The vector tension is automatically calculated by the PLC to achieve automatic tension control, making the tension control of the film more scientific and more accurate The motor automatically let the tension control range, no residual torque, tension control accuracy unwinding motor can be positive and negative rotation, you can roll forward when the forward, but also when the reverse winding Adjusting roller and guide roller
Structure Adjustable structure is in manual form Adjust the roller at one end and adjust the other end Adjustable roller, guide roller are imported bearings Specifications Adjustment roller diameter φ100 mm Adjustment roller length 1300 mm Adjustable range ± 20 mm Guide roller diameter φ100 mm Guide roller length 1300 mm Features Adjust the roller mechanism to adapt to different quality of the film roller dynamic balance, making the machine without vibration source, smooth operation The use of imported high-precision bearings make the roller in the high-speed rotation smoothly, reduce the machine noise Traction drive
Structure AC variable frequency drive Synchronous belt drive Traction roller with steel roller structure Rotary body are imported bearings double roller on the roll, steel and soft combination roller clutch, the pressure adjustment by the pneumatic components to complete Specifications Drive roller diameter φ120 mm Cylinder diameter φ100 mm The maximum pressure of the roller is 200kg Drive roller length 1300 mm Roller dynamic balance accuracy ≤ 5g Traction motor power 4kw Features With the traction device, you can block the tension and winding tension, so that changes do not affect each other After the roller is balanced, the machine has no vibration source and smooth operation The use of imported bearings make the roller at high speed when the smooth rotation, reduce the machine noise The use of timing belt makes the transmission accurate, smooth operation, while reducing the machine noise The use of AC variable frequency drive, making the system tension and stability, high precision transmission, smooth and reliable operation Printing inspection Install the memory stop device and find the defective product. The defective product can be automatically retreated to the observation screen. The observation screen is a milky white plexiglass screen with light source Rewinding Roll
Structure swing arm frame Clutch is in manual form Specifications Roller diameter φ80mm The length
Receiving Department
Structure no shaft pneumatic cone top of the receiving rack, the receiving rack can be hydraulic lift, and can be wide and narrow Tension automatic control Motor take the initiative to roll, with unwinding function Specifications Roll width range 400 ~ 1300 mm Winding diameter (Max) φ800 mm Winding motor power 4kw Features non-axis pneumatic cone top-type reeling rack, and hydraulic lift, up and down roll fast and convenient. Tension The vector tension is automatically calculated by the PLC to achieve automatic tension control, making the tension control of the film more scientific and more accurate The motor is automatically wound so that the tension control range is large, there is no residual torque, and the tension control precision is high winding motor can be positive and negative rotation, you can rewind when the forward, but also when the volume rewind Rewinding part High-strength low-stress alloy cast iron wall panels wall panels by the second stress to eliminate, good stability Pneumatic hydraulic system The machine is more use of pneumatic and hydraulic actuators, from the panel centralized operation, through the implementation of the solenoid valve, a higher degree of automation, reduce labor intensity Electrical control system using man-machine interface, PLC centralized control, advanced technology man-machine interface, display and set the host speed, winding length, put, winding tension set, taper settings

Electrical and Electronic Components
PLC	Siemens,Germany
Frequency Inverter	Japan Yasukawa
man-machine Touch sreen	Weinniew ,Taiwan
traction	Danma servo motor
Rewinding motor	Danma servo motor
Unwinding motor	Danma servo motor
Main pneumatic components	Taiwan Airtac
Main bearing	NSK ,Japan FranceSchneider KAOGEER
main low-voltage electrical appliances	Kesai Weinan
Pneumatic Hydraulic	Pausource,Taiwan
Computer System	Siemens,Germany
EPC	Japan Yasukawa
