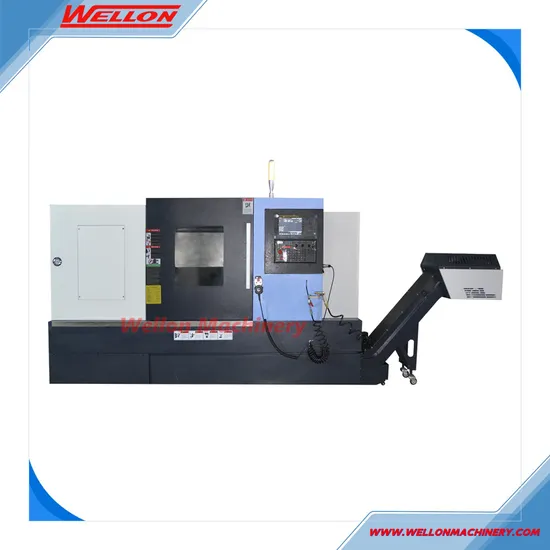

Tck4563 CNC Lathe Machine Horizontal Turning Machining Center
| US$28,000.00-40,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TCK4563
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Max.Swing Over Bed
650mm
Max.Swing Over Cross Slide
400mm
Turning Length
1000mm
Spindle Bore
87mm
Transport Package
Ply Wood Case
Specification
CE ISO9001
Trademark
WELLON
Origin
China
HS Code
84589100
Production Capacity
100 PCS/Month
Packaging & Delivery
Package Size
300.00cm * 228.00cm * 250.00cm
Package Gross Weight
3800.000kg
Product Description
Product DescriptionProducts Description:
TCK4563 CNC lathe machine horizontal turning machining center
Performence Features:
This series of machine tools uses a 30° inclined overall bed, and the bed material is HT300. Using resin sand art casting, internal
The rib layout is reasonable. The guide rail adopts imported linear roller guide, which has improved feed accuracy, low friction resistance, good rigidity, and
Vibration and deformation resistance is high, allowing users to obtain higher accretion accuracy and faster moving speed, and obtain higher
Production efficiency.
Higher accuracy Taiwan Linear guideways.
High speed spindle unit.
Higher rigidity cast iron.
Integrated automatic lubrication
45 degree One-piece casting slant bed. Product Parameters
Technical parameter:
| Specifications | Unit | TCK4563 |
| Max.swing over bed | mm | 650 |
| Max. turning diameter | mm | 600 |
| Max.swing over cross slide | mm | 400 |
| Max. turning length | mm | 1000 |
| Spindle nose | A2 | A2-8/A2-11 |
| Chuck size | Inch | 10" |
| Spindle motor power | kw | 15/18.5 |
| Max.spindle speed | rpm | 2600 |
| Spindle bore | mm | 87/102 |
| Max.bar dia. through spindle hole | mm | 72/91 |
| Bed slant angle | Degree | 45° |
| X/Z axis leadscrew diameter | mm | 40/50 |
| X/Z axis linera guideway width | mm | 55/55 |
| X axis limit Travel | mm | 350 |
| Z axis limit Travel | mm | 1120 |
| X/Z axis motor torque | Nm | 22/22 |
| X/Z axis motor power | kw | 3.0/3.0 |
| Tailstock travel | mm | 1250 |
| Tailstock quill travel | mm | 120 |
| Tailstock quill diameter | mm | 100 |
| Tailstock taper | Morse | MT5 |
| Machine weight | kg | 6300 |
Standard Accessories
Standard accessories
| Fanuc 0i TF plus controller | ||
| Main motor and servo motor from Fanuc | ||
| Linear guideway from Hiwin or PMI | ||
| Ball leadscrew from Hiwin or PMI | ||
| Hollow hydraulic chuck | ||
| Foot switch for chuck clamp and tailstock | ||
| Tool measurement probe Renishaw | ||
| Hydraulic programmable tailstock | ||
| Hydraulic stations | ||
| Hydraulic turret 12 tools | ||
| 6 tool seat (2 external,2 internal,2 boring) | ||
| Telescopic covers | ||
| Full closed cover | ||
| Coolant system | ||
| Lubricating system | ||
| Work lamp | ||
| Tri-color alarm lamp | ||
| Safty door | ||
| USB interface | ||
| Chain type chip conveyor | ||
| Air gun + Water gun | ||
| Schneider electric components | ||
| Live center | ||
| Tools and tool box | ||
| English Manual |
Optional accessories
Optional accessories
| Power turret BMT55 | ||
| Extra Radial live head | ||
| Extra Axial live head | ||
| C axis Function | ||
| Y axis travel ±45mm | ||
| Part catcher | ||
| Servo type bar feeder |
