Paint Portable Metal Rust Removal Surface 100W 200W 500W 1000W Automobile Car Rust Removal Laser Fiber Laser Cleaning Machine

Product Description

* Collimated output,The collimation spot size can be customized
* The laser cleaning head is light, weighs only 620g (without armouredcable), and Can be handheld for a long time
* Red light assists in focusing, and the focus position can be adjusted according to differentlenses
* Wireless control,Can adjust parameters and control the light from a long distance

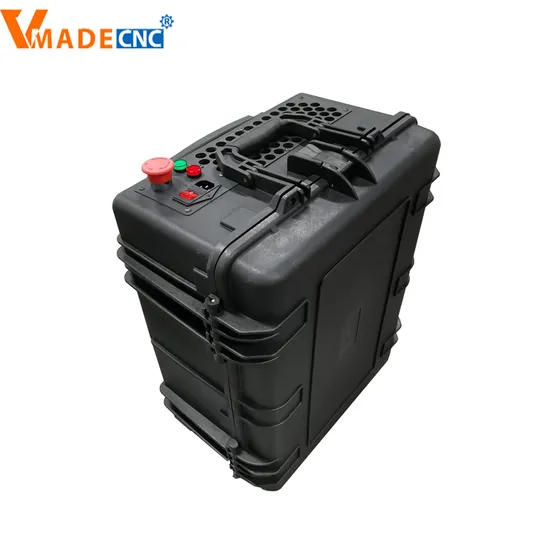

* Portable trolley case design, the weight of the whole machine is 28kg, can be transported by high-speed rail or air consignment
* High-strength injection molding box, stable structure, wear-resistant, shock-proof and anti-fall

Laser Type	Fiber Laser
Certification	ce
Laser Source Brand	jpt
Weight (KG)	28KG
After-sales Service Provided	Online support, Video technical support
After Warranty Service	Video technical support, Online support
Applicable Industries	Printing Shops, Manufacturing Plant, Food & Beverage Factory, farms, Hotels, HOME USE, Garment Shops, Construction works , restaurant, Machinery Repair Shops, Advertising Company, Food Shop, Energy & Mining, Retail, Building Material Shops
Product name	Laser Cleaning Machine
laser power percentage range	0-100%
Drawing graphics selection	Line/rectangle
Focal length	Focal length of firld mirror(F160,254,330.)
Wave length	F160=110mm/F254=175mm/F330=230mm.......

Scanning system motor parameters
Voltage	±15V - ±18V
Current	2A RMS 10A Maximum
Interface Signal	Digital,XY2-100
Operation Temperature	+15ºC - +35ºC
Storage Temperature	-10ºC - +60ºC
Humidity	< 80% No condensation
Resolution	12 μrad
Repeatability(RMS)	2 μrad
Maximum Gain Drift	15 ppm/K
Maximum Position Drift	10 μrad/K
Long-term Drift	< 150 μrad
Clear Aperture	9 mm
Acceleration Time	0.23 ms
Positioning Speed	7 m/s

The laser head adopts an innovative red light auxiliary focusing design, which can easily find the focus position under different field lenses by the red light indicator.Most of the existing products on the market use distance measurement or red light indication.

However, the measurement position is not clear, and it is impossible to determine whether the selected partial focus is selected, products with red light indicators lack adjustment functions,if changing the field lens changes the focus position, it is difficult to adjust and adapt. The method we adopted overcomes the above-mentioned shortcomings. The focus position can be seen intuitively. For local focus, the focus height can be adjusted in real time according to different field lenses to meet the auxiliary focus requirements in different scenes. When the focus spot falls inside the focus area, it indicates that it is currently in focus; otherwise, it is out of focus. The focus area can be adjusted according to the specifications of the field lens, and the auxiliary focusing can be realized under the conditions of the field lens of different focal lengths.
How to use the roller
Scroll up and down to select a parameter to be modified, and press inward to select the parameter to enter the selection to modify or confirm the modification.
