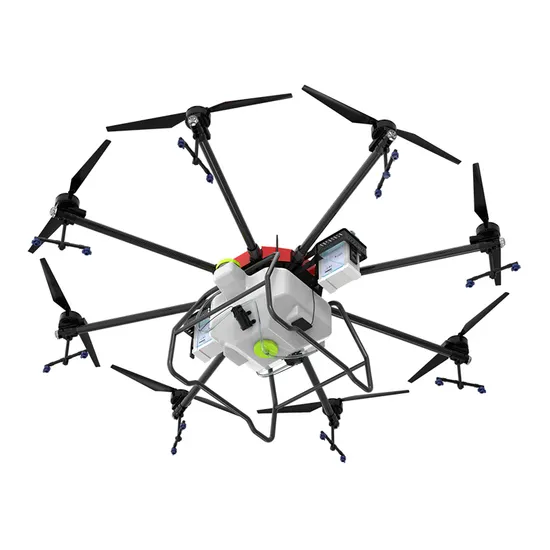

72kg Auto Flight Drone Uav Crop Sprayer Automatic Helicopter Unmanned Autonomous Vehicle
| US$14,999.00-18,999.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
D72L-8
Spraying Shape
Full Cone
Volume
16L~30L
Power Supply
Electric
Technics
Assembly
Material
Aviation Carbon Fiber and Aviation Aluminum
Type
Sprayer Drone
Sprayer Type
Pump
Usage
Agriculture
Applicable Industry
Farms,Home Use,Epidemic Prevention
Feature
Anti-Fall
Production Material
Aviation Carbon Fiber and Aviation Aluminum
Production Folding Size
1860mm*1860mm*545mm
Max Pesticide Load
72kg
Aircraft Medicine Box Capacity
72L
Flight Radius
Less Than 5000m
Max Takeoff Weight
147kg
Aircraft Weight
52kg
Flight Attitude
Less Than 30m
Flight Duration
13-33minutes
Condition
New
Warranty Time
12 Months
Transport Package
Professional Package Box
Specification
2 CBM
Trademark
Brouav
Origin
China
HS Code
8802200090
Production Capacity
10000 Unit
Product Description
72kg Auto Flight Drone Uav Crop Sprayer Automatic Helicopter Unmanned Autonomous Vehicle- OEM & ODM Service -
| Model | D72L-8 |
| Product Material | Aviation carbon fiber + aviation aluminum |
| Product Extended Size | 1860mm*1860mm*545mm |
| Product folding size | 1080mm*1080mm*545mm |
| Maximum takeoff weight | 147KG |
| Aircraft weight | 52KG |
| Pesticide Barrel | 72L |
| Flight altitude | ≤30m |
| Fly time (unloaded) | 20~25 minutes |
| Fly time (Loaded) | Full load 10~18 minutes |
| Flight speed | 0-20m/s |
| Spray width | 8-15m |
| Hovering in the air | Hovering in any direction |
| Spray flow | 3-16L/min double pump adjustable |
| Spray system | Imported high pressure anti-floating atomizing nozzle |
| Atomization point size | 60~90μm |
| Fly Control | Industrial Version GPS and Controller |
| Spray efficiency | 28 hectares / hour |
| Safe takeoff and landing wind speed | ≤7 Level |
| Motor speed | 5000rpm |
| Power system | 60.9V power polymer computer battery |
| Intelligent Charer | AC Input 100-240V |
| Lithium-polymer battery | 42000mAh*2 |
Features
1. The fuselage adopts a closed design, which can prevent pesticides from entering the flight control system
and provide safety guarantee for long-term operation;
2. The plant protection machine has built-in GPS and compass module, with fixed-height and fixed-point flight
function, which can well maintain the spray height and spray route accuracy of the operation;
3. The height limit and flight speed limit of spraying operation can be set. The high-pressure spraying system
has good atomization effect. Under the wind pressure of the aircraft, the drug mist has the characteristics of
strong penetration Leaf face.
4. Modular design of functional components, easy maintenance and upgrade.
5. Using intelligent plug-in battery.
6. Use quick-plug medicine barrel.
7. High-pressure brushless water pump is adopted, and the ESC is fully waterproof.
8. Wear the case, optimize the whole machine, and hide the medicine circuit.
9. 7075 aviation aluminum (high grade) is used for the folding part.
10. Alternating spraying function, the spray head can be switched independently.
11. The arm can be quickly disassembled.
