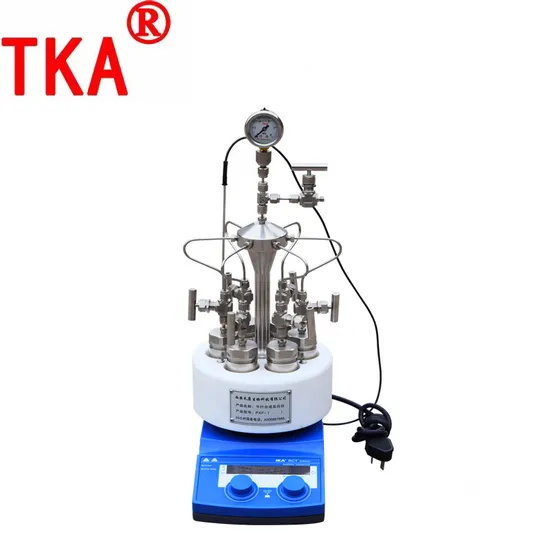

200ml PTFE High Pressure Parallel Reactors

Product Description

Product Introduction
Features
1. Multiple reaction kettles can perform synthesis screening and rapid reaction under the same experimental conditions, as well as pressure reaction under the same or different inert gas conditions.
2. The reaction temperature conditions are from room temperature to +300°C LED digital display, the buttons can be set arbitrarily, and the control accuracy is 1°C.
3. Rotational vibration function of the reaction platform: 0-2000 rpm rotary vibration LED digital display, button to adjust the speed at will.
4. It can work independently or in series at the same time, and the design of independent sealed kettle cover will not produce cross-contamination.
5. Temperature control mode: high temperature adopts PID control heating constant temperature digital display, temperature control accuracy ± 1 ºC.
6. Module capacity: 6-hole/8-hole/10-hole/12-hole maximum temperature difference of the same module is ±0.21ºC, which can effectively ensure the accuracy of experimental data.
7. Power supply voltage: 220V/50HZ machine power 800W.
8. Dimensions : 365×400×480(mm).
Product Parameters

Model	GPXF-6-100	Type	Independent parallel reactor
Main engine	RCT imort form Dermany	Reaction	316L stainless steel/Hastelloy alloyC276
Sensor	PT100 import Dermany	Model	6Hole/8Hole/10Hole/12Hole Heating module
High temperature	300ºC	Pandle valve	316L Stainless steel/Hastelloy alloy C276,3000PSI
Temperature Measuring points	One place for main engine heating module,one place for in the kettle	Safety valve	Hastelloy alloy C276,10MPa,Release pressure≥10.1MPa
Heating power	800w	Sampler	6pieces online samplers,316L stainless steel material
Stirring speed	2000Rmp	Reaction capability	25ml/50ML/100ml/200ml(Optional)
Inflation hose	Withstand voltage	Demension	365*400*480mm
Precision pressure gauge	Pressure and shock proof pressure gauge, maximum range of 10Mpa	Reaction ining	PTFE/ppl/JDS2Quartz glass
Application field	Exploration of experimental conditions such as multi-site crystallization reaction, multi-site hydrogenation reaction, anhydrous and oxygen-free parallel reaction.
