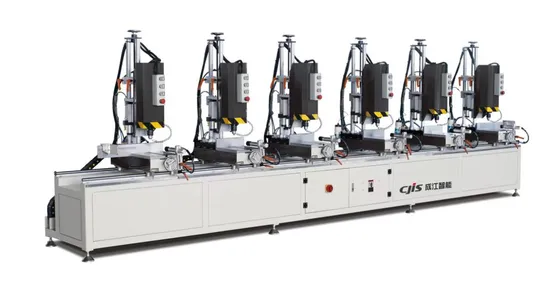

Aluminum Door and Window Making Machine Aluminum Curtain Wall Six-Head Combination Drilling Machine

Product Description

Product Description
1,Customizable four-head / five-head / seven-head / eight-head models
2,Suitable for drilling aluminum alloy door and window, curtain wall profiles, especially suitable for long materials and mass production.
3,Maximum cross-section of processed profiles 250×250mm, maximum length of processed profiles 5,000mm.
4,Can be equipped with multiple drilling heads to process multiple group holes simultaneously.
5,The feed system uses pneumatic-hydraulic damping cylinders for smooth feeding.
6,Equipped with a high-quality control system for independent processing of each machine head and arbitrary linkage processing of any machine head.
7,The machine head can be manually adjusted in the X, Y, Z-axis directions and is equipped with a scale for easy and concise adjustment.
8,The Z-axis uses linear slide guide, significantly improving load-bearing capacity, guiding accuracy, and service life.
Detailed Photos


Product Parameters

Input power supply:	380V/50Hz
Motor power:	6×1.5kW
Working air pressure:	0.5~0.8MPa
Number of drilling heads:	6
Maximum distance between two drill holes:	4,850mm
Minimum distance between two drill holes:	310mm
Maximum drilling diameter:	13mm
Worktable Size:	300×300mm
Drill feed stroke:	125mm
Maximum cross-sectional size of processed aluminum profiles:	250×250mm
Dimensions:	5,000×1,100×1,800mm
Weight:	Approximately 1,350kg

Company Profile
Shandong Chengjiang CNC Technology Co., Ltd is a high-end intelligent equipment manufacturing company that integrates research, production, and sales. We specialize in the research, development, manufacturing, and sales of intelligent industrial aluminum processing equipment, aluminum door and window equipment, aluminum curtain wall equipment, and plastic door and window equipment. Our outstanding research and development team and professional technical staff have laid a solid foundation to ensure the production of high-quality equipment. Chengjiang is dedicated to creating the most advanced door, window, and curtain wall processing equipment in China.

Our Advantages
Shandong Chengjiang CNC Technology Co., Ltd. is a door and window processing equipment company integrating industry and trade. Has the following advantages:
1. It has a casting workshop and an assembly workshop and can accept product customization.
Our company's equipment processing has a complete production line, from the processing of raw materials to the polishing, casting and painting of parts, all are carried out in the foundry workshop. After the parts are processed, they are transported to the assembly workshop for assembly and debugging. We have many years of experience in door and window equipment processing. Our company can accept customization requirements with different technical conditions and can customize production according to customer needs, including equipment length, equipment parameters, equipment color, etc.
2. Reduce costs, increase efficiency, and control quality.
The integration of industry and trade can integrate production and sales links, optimize the supply chain, reduce costs, and improve efficiency. Since the production and sales links are within the same company, product quality can be better controlled to ensure that products meet standards.
3. Professional technical R&D team with multiple patents.
The company has established a professional technical R&D team of more than 10 people, specializing in product R&D and improvement, and has multiple invention patents and its own intellectual property rights. And the technical personnel responsible for processing and assembly all have more than 10 years of work experience and strictly control product quality.
After Sales Service
Pre-sale service
Free contact for the most suitable machine
Free professional design for each customer especially. After sale service 24 hours technical support by phone, email or skype
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
FAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), 14 years' focusing on Upvc,Aluminum Window and Doors Equipment and curtain wall equipment.
2.After an order is placed, when to deliver?
Generally about 15 days, If we have inventory, we can arrange shipment within 5 days.
Please be aware that our production lead times depend on specific items and item quantities.

3.What about the warranty with after - sales services?
12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
Each machine must be carried out 100% quality examination and test before shipment.
And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?
We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
