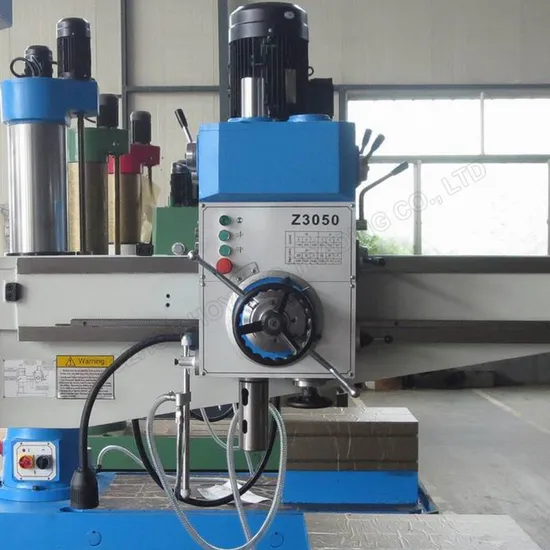

Radial Drilling Machine Z3050X11 Z3050X16 Z3050X16/I Z3050X16/II
| US$5,000.00-10,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z3050x11 Z3050x16 Z3050x16/I Z3050X16/II
Structure
Vertical Drilling Machine
Layout
Vertical
Controlling Mode
Manual
Number of Shaft
Manual
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Spindel Travel
220mm
Drill Capacity
50mm
Motor Power
4kw
Transport Package
Plywood Case
Specification
Cast Iron
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
845929000
Production Capacity
300
Product Description
RADIAL DRILLING MACHINE FEATURES: Mechanical transmission
Electricity clamping
Mechanical speed
Automatic take-off and landing
Automatic feed
SPECIFICATIONS:
| SPECIFICATIONS | Z3050×14/II | Z3050×16/II |
| Max.drilling dia (mm) | 50 | 50 |
| Distance from spindle nose to table surface (mm) | 260-1050 | 260-1050 |
| Distance from spindle axis to column surface (mm) | 360-1400 | 360-1600 |
| Spindle travel (mm) | 220 | 220 |
| Spindle taper(MT) | 5 | 5 |
| Spindle speeds range(r.p.m) | 78-1100 | 78-1100 |
| Spindle speed steps | 6 | 6 |
| Spindle feeding range(mm/r) | 0.10-0.56 | 0.10-0.56 |
| Spindle feeding steps | 3 | 3 |
| Rocker rotary angle (°) | 360 | 360 |
| Main motor power( kw) | 4 | 4 |
| Movements motor power (kw) | 1.5 | 1.5 |
| Weight (kg) | 2400 | 2800 |
| Overall dimensions (mm) | 1950×810×2450 | 2170×950×2450 |
