Variable Angle Single Head Cutting Saw: Precision for Aluminum Profiles
Basic Info.
Model NO.
LSJ-500A
Condition
New
Certification
ISO, CE
Automatic Grade
Automatic
CNC or Not
CNC
Voltage
380V
Applicable Industries
Manufacturing Plant, Retail
Marketing Type
Ordinary Product
Core Components
Pressure Vessel, Bearing, Motor
Weight
600 Kg
Applicable Material
PVC, UPVC, Aluminum
Key Selling Points
Easy to Operate
Machine Type
Aluminum Cutting Saw Machine
Blade Size
500mm
Angle Regulation
Digital Display
Cutting Angle
15° to 165°
Motor Power
2.2kw
Specification
960*760*1310mm
Trademark
Hisena
Origin
China
Production Capacity
100sets/Month
Product Description

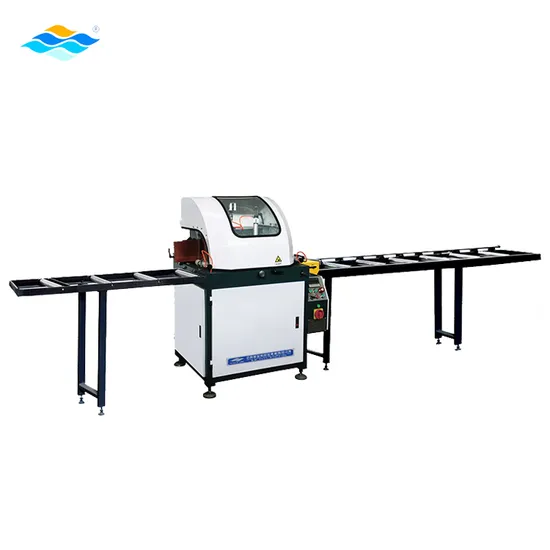

Product DescriptionLSJ-500A is a upcut saw for straight and mitre cutting of pvc and aluminum profile. Standard features:
* Cutting angle is variable from 15 degree to 165 degree.
* Angle regulation is by a hand crank.
* Equipped with a digital display for reading cutting angle.
* Equipped with a digital display on the measuring stop for reading cutting length.
* Hydro-pneumatic saw feed.
* 3 meters long roller conveyors at both sides.
Optional:
* CNC measuring stop.
* Auto feed.
Specification
| Model | LSJ-500A |
| Air pressure | 0.5-0.8mpa |
| Air consumption | 60L/min |
| Motor power | 2.2kw |
| Blade size | Ø500mm |
| Spindle speed | 2840rpm |
| Feeding speed | 0-3m/min |
| Angle regulation | Manual with digital display |
| Cutting angles | 15° to 165° |
| Max.cutting W*H | 150*150mm(45deg) 250*150mm(90deg) |
| Dimension | 960*760*1310mm |
| Weight | 600kg |
