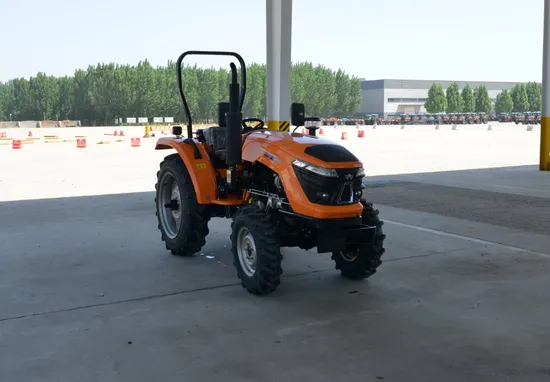

Ensign Sell Farming equipment 40HP Tractors with Tiller

Product Description

Ensign Heavy Industries CO.Ltd. Factory Sell 4WD 50HP FarmTractors Made in China Model :YX404-B
Strong Power
Quanchai engine is adopted for advanced performance, strong power and high economic benefits.
Power emission and performance are upgraded constantly with lower fuel consumption, high reliability and advanced technology.
High Reliability
Strengthened independent control double-action clutch is adopted as standard configuration, contributing to high reliability.
High pressure individual power position lifter is equipped as standard configuration, contributes to higher reliability
Enlarged and incorruptible plastic fuel tank, new type of dry air filter, longer service time
The hydraulic system uses oil separately and adopts 24° cone seal, ensuring the cleanliness, low fault and high reliability.
Dry air filter is equipped, which has good filtering effect, convenient maintenance, high cleanliness of the air intake system, and avoids the abrasion of engine inner parts.
Combined instruments equipped which have more accurate data and more obvious functions. The performance of the whole machine can be monitored in time during operation
High Adaptability
Two groups hydraulic output is adopted as standard, and one group as optional, enabling the tractors to adapt to various work sites.
Semi-detached two-speed power output with three combinations of 540/760rpm, 540/1000rpm and 760/1000rpm enable the tractors to work with kinds of implements.
There are many choices of tires. Paddy tires with specifications of 9.5-24/14.9-30 can be equipped as optional, increasing the passing ability.
Rear wheel tread adopts stepless and step-adjustable methods, suitable for any ridge distance operation, and has a wide range of uses.
Air brakes can be equipped as optional to meet the demand of hooking up the trailer.
Comfortable Driving
Sliding sleeve gearbox with shift gears of 12F & 12R features reasonable speed match. Synchronizer as optional, easy to operate.
The clutch adopts the hanging pedal type, which is convenient and free to step on. The main and auxiliary transmissions are operated on the side, and the operation is flexible and light.
Full hydraulic steering system is adopted for easy driving and flexible steering.
Adjustable steering wheel contributes to comfort.
Streamlined design of the tractor body improves heat balance and contributes to aesthetic appearance.
Adopting vibration-damping flat floor and optional sealed cab, which has good sealing performance, low vibration and low noise of the whole machine. Rear-view camera and GPS can be equipped as optional.
Ensign Heavy Industries Co., Ltd. It is a large machinery manufacturing enterprise, professional in the R&D and production of agricultural machinery tractors, construction machinery wheel loaders and industrial vehicles forklift trucks. The company has world-leading technology R&D centers, fully functional manufacturing centers and also has built a supporting industrial park with complete facilities. The company has ISO9001 Quality Management System, ISO45001 Occupational Health and Safety Management System, ISO14001 Environmental Management System and other qualification certification.
Specification of ENSIGN Tractors, YX404-B

Item	Measurement		Remark
Model No.	/	YX404-B
Drive Type	/	4WD
Safety Type	/	With safety frame
		Open Canopy	Optional
Function	/	General Farming
Overall Size(L×W×H)	mm	3600×1500×2400
Wheel base	mm	1850
Front Wheel Tread	mm	960/1100/1200/1300
Rear Wheel Tread	mm	960-1300
Min ground clearance	mm	360
Min operating Mass	kg	1770
Standard Front counter weight	kg	60
Standard rear counter weight	kg	56
Gear shift(F/R)	/	8/8
Max.speed	km/h	29
Ground speed	km/h	Forward Low:1.87/2.82/4.43/6.11 High:8.66/13.05/20.5/28.26 Reverse low:1.74/2.63/4.13/5.69 high:8.06/12.16/19.09/26.32

ENGINE Number	/	4B2-40V32
Engine type	/	Vertical,Direct injection,four -stroke, water cooled
Brand	/	Quanchai
Air entering type	/	Normally Aspirated
No.of cylinders	/	4
Rated power	kW	29.5
Rated speed	r/min	2400
Air filter model	/	KY250
Air filter Type	/	Wet
Steering system	/	Total Hydraulic
Transmission	/	Two axis type, straight way (4+2)x2composition
Tire size(F/R)	/	8.3-20/12.4-28	Normal tire
		7.5-16/11.2-24	Optional Normal tire
		7.5-16/11.2-28
		7.5-16/9.5-28
		6.0-16/9.5-24
		6.5-16/9.5-24
		6.5-16/9.5-28
		7.5-16/11.2-24	Paddy Tire optional
		8.3-20/11.2-28
Brake		Dry type, double disc brake with mechanical control
Airbrake		With or without	optional
Clutch		Dry ,Dual action
		Dry, Single action	Optional
3 point linkage	/	Cat.1
Hydraulic output	/	1set
		2sets	optional
PTO spline	/	8
	/	6	optional
PTO speed	r/min	540/720
		540/1000	Optional
