Product Description

CHINA GOODA-TH-430NC Specifications

Item		Unit	Model
			TH-430NC
Cutting Capacity	Control Axis	No.	4
	Max.Milling Size (L*W*H)	mm	460*460*190
	Min.Milling Size (L*W*H)	mm	20*20*20
	One time Cutting Capacity	mm	2*2.0
Travel	X axis	mm	241
	Y axis	mm	241
	Z axis	mm	693
Feed Speed	X/Y/Z Max. rapid feed rate	m/min	9
	Max.Cutting feed rate	m/min	9
	Manual feed speed	mm/min	1-1500
Spindle	Spindle speed	Rpm	50-500
	Spindle taper	-	NT50
	Cutter diameter	mm	200
Motor	Spindle servo motor	Kw	2*7.5
	X/Y axis feed servo motor	Kw	1.8
	Z axis feed servo motor	Kw	1.8
	Rotary table Servo motor	Kw	1.8
	Clamper hydraulic motor	Kw	1.5
Work table	Worktable dimension	mm	330*330
	Max.Loading weight	Kg	400
Hydraulic Clamper	Cylinder No.	Pcs	1
	Oil tank volume	L	60
Lubrication system	Lubricating oil tank	L	3
	Lubricating power	W	18
Floor space require (L*W*H)		mm	3.3*3.2*2.3
Machine weight		ton	6
CNC system			LNC CONTROL SYSTEM OR Mitsubishi M80A controller

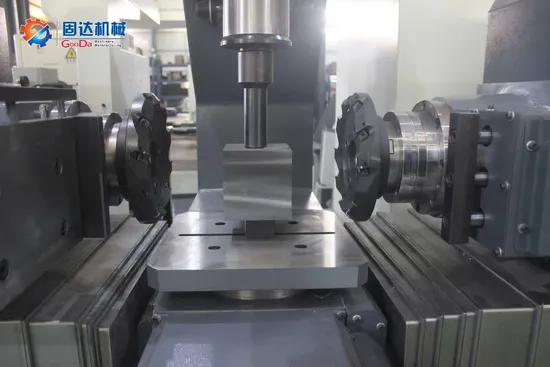

Processing View
FAQ:
1. What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI etc. It depends on your choice.
3.When is the delivery time?
Conventional Machines,We will delivery then within 30-45 working days after received your
deposit,if some special machines will be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
Packing: PE bag cover inside+ Plywood box + Steel beam frame.
5.How can I choose the most suitable machines ?
Please let us know your machining demand or machine size ,we can choose the best model
for you , or you can choose the exact model by yourself. You can also send us the products
drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
FOB, CFR,CIF or others terms are all acceptable.
7. What is your payment terms ?
Payment Terms : T/T 30% advance , 70% before shipment.
Company Profile We are the first manufacturer to produce the high-end CNC machine in China, who focusing on developing and supplying the high efficiency, high accuracy, and high quality of CNC duplex milling machines and exchange-pallet vertical CNC milling machine.
Our aspiration is to be flexible in implementing customer requirements, guarantee the high reliability of the milling machine, ensure that spare parts are available at short notice and facilitate the prompt availability of service engineers.

Certification
Cooperative Partner
Maintenance and repair
The benefits of GOODA maintenance contract (After sales 3 years): Basic requirement in a certified QS system Guarantee for the accuracy of the measuring and test results Calibration, maintenance and, if necessary, repair with just one visit Fixed prices with a clear breakdown of costs Preventive maintenance helps you avoid expensive faults and ensures a high level of quality that lasts The maintenance contract includes: Travelling time and expenses for our technician Maintenance and calibration work Small items required for carrying out the specified maintenance work Calibration with a corresponding maintenance and test report, allowing the results to be used to demonstrate compliance with national standards
