Biomass Wood Sawdust Briquette Machine Charcoal Briquette Machine

Product Description

Biomass Coconut Wood Dust Charcoal Briquette Making Press Machine Product Description

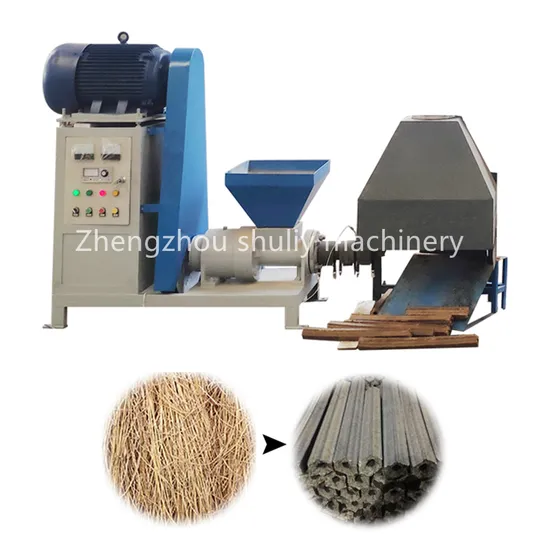

This is a sawdust briquette-making machine. The machine adopts good quality carbon steel, the service life over 10 years. The material can be various biomass, like palm kernels, peanut shells, branch, logs, etc. The material size must less than 5mm. If the material too big, we will recommend you crusher according to your requirement. Besides the material size must less than 5mm, the moisture of the material should be 12%. Too wet or too dry will cause a bad forming effect. If your material moisture over 12%, we have a sawdust drying machine. After crushing, the material was delivered to the drying machine, then it was sent to the forming machine.

Machine Application

Raw material:
Peanut shell, Rice husk, Sawdust, Little branch, Corncob, Bagasse, Leaves, Logs, Palm kernel, Nuts shell, Straw, Bamboo, Cotton stalk, etc. If you unsure material is ok, please send it to us, will offer a free test service for you.
The working principle of this machine is sawdust was put into the machine, the screw will push the material into the sleeve. After high temperature and high pressure, the raw materials are extruded into different shapes.
Product Parameters

Model	Power	Capacity	Dimension
SL-50	15 kW	220 kg/h	1800*700*1500 mm
SL-60	18.5 kw	250 kg/h	1700*700*1600 mm
SL-70	22 kw	300 kg/h	1850*800*1700 mm
SL-80	30 kw	400 kg/h	2100*900*1700 mm

Product show
The final product of our sawdust briquette machine can be square or hexagon. If you want another shape, please contact our service center, we will offer customized service for you. Generally speaking, the diameter of the sawdust briquette is 50 mm. We have exported to many countries all over the world. And we found it is a popular diameter in the world. You can decide the sawdust briquette length when processing. If you want bigger or smaller sawdust briquette, we can also offer, please contact me.

Installation Instructions
There are three spare parts of sawdust briquette: Heating ring, Screw, Sleeve. All of them adopt good quality material. We advise buying some spare parts when you order. Once there have some wrong, change it. It will save labor and time.
Packaging & Shipping
FAQ
Q: Why Choose Us?
A:1). Several Year's Experience. We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as in the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)
2). Manufacturer, Not Dealer Factory direct sale makes the price more competitive. Customers are always welcome to visit our factory for machine tests.
3). Fast Delivery: We promise the goods can be shipped out on the delivery date after confirmation of the order.
Q: How do I know the quality of your machine?
A: You can send your sample materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide the installation?
A: Yes, according to the customer's requirement, we will dispatch engineers to guide installation and training about the operation of the machine.
Q: What should we do if we have problems during use?
A: We provide machine-use video and operating manuals. At the same time, we also have after-sales service 24 hours online service.
Q: Can we customize motor voltage?
A: Yes. We will transform the voltage according to the customer's needs.
