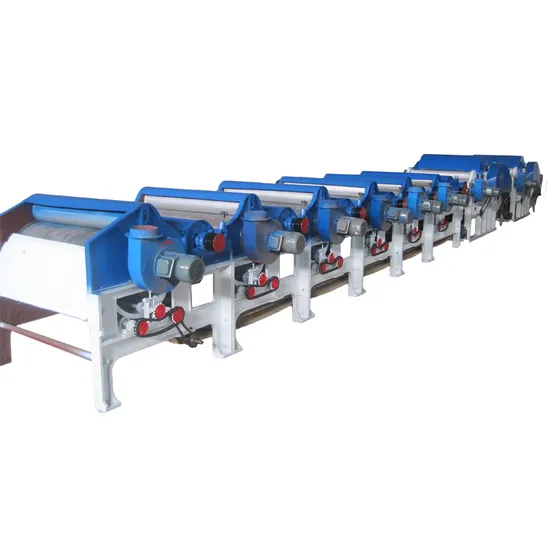

Textile Fabric Yarn Cloth Cotton Jean Waste Recycling Machine for Textile Waste Tearing

Product Description

Textile Fabric Yarn Cloth Cotton Jean Waste Recycling Machine For Textile Waste Tearing
1. Application
It is the ideal model to open the textile cloth waste, spinning yarn waste etc.
It can loose the fabric waste, hard waste, prepare for further process by GM textile waste recycling machine series.
This machine helps to keep the fiber length of the finished product and reduce the damage.

2. .Characteristics
1) The strength of the rack is high;
the structure is reasonable;
the machine is designed compactly;
the performance is stable and reliable.
2) The new opening rack has a long lifetime, little damage to fiber and low loss
3) no manual work is needed to remove the impurities which can be sent to the feeding cotton belt automatically
4) By adopting the system of infinitely variable speed, the output and quality can be adjusted according
to the different requirements of the raw materials provided by the customers
5) The bearings are adopted in the rotation position.
Therefore, there are few wearing and low fault rate

3. Main Technical Data

Specification	GM250	GM400	GM600I
Working width	1040m, 1300mm	1040m, 1300mm	1040mm, 1300mm
Roller Diameter	250mm	400mm	600mm
Output	150-200kg/hr	150-200kg/hr	150-200kg/hr
Motor	7.5kw, 5.5kw	11kw, 7.5kw	22kw
Dust cage(mm)	500mm	500mm	500mm
Fan motor	1.5kw	1.5kw	1.5kw
Note	The output and motor power can be influenced by the different material
