200L 220L Plastic Drum Blow Moulding Machine
| US$56,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
DSB120
Making Method of Parison
Extrusion-Blow Molding
Automation
Automatic
Computerized
Computerized
Certification
CE
Sutiable
200L 250L Drums
Max. Product Volume
250L
Suitable Material
HDPE
Output Capacities
as Per Sample
Screw Diameter
120mm
Screw L/D Ratio
28 L/D
Screw Drive Power
75kw
Screw Heating Capacity
30 Kw
No.of Heating Zone
5 Zones
Output of HDPE
240 Kg/H
Oil Pump Drive Power
45 Kw
Clamping Force
800 Kn
Cooling Water Pressure
0.3MPa
Water Consumption
180 L/Min
Delivery Time
75days
Transport Package
Film Packing
Specification
DSB120
Trademark
Dawson
Origin
Zhangjiagang, Jiangsu, China
HS Code
8477301000
Production Capacity
as Per Samples
Product Description
DAWSON MACHINERY & MOULD GROUP***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

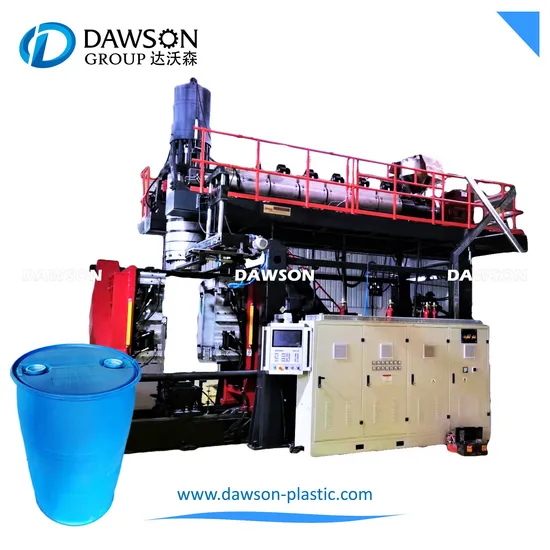

Accumulation Blow Molding Machine DSB120
DSB120 Accumulation Blow Molding Machine was specially designed for making plastic water tanks, plastic cans, lubricant oil bottles, plastic drums, plastic toys and other plastic containers not over 250L. The features of this machine: (1)It is suitable for producing PE, HDPE, PP, PVC so on, plastic containers and bottles in all shapes are available, the max. Product volume is up to 250L. (2)Single station single die head design, very easy to operate and maintenance. (3)Most components of the blow moulding machine are from famous world brand. (4)Fully automatic process with low power consumption, high efficiency, quick and safe operation, easy for maintenance. (5)Accumulation die head, MOOG parison controller equipped. (6)Bottom blow technology make the product perfect. (7)Auto lubricant system controlled by PLC. Blow Molding Machine DSB120
| Max. Product volume | 250liters |
| Output capacities | as per samples |
| Screw diameter | 120mm |
| Screw L/D ratio | 28 L/D |
| Screw drive power | 75 KW |
| Screw heating capacity | 30 KW |
| No.of heating zone | 5 zones |
| Output of HDPE | 240 KG/H |
| Oil pump drive power | 45 KW |
| Clamping force | 800 KN |
| Max.size of mold | 1000X1500mm |
| Mold stroke | 600-1500mm |
| Max.die diameter | 520mm |
| Die heating power | 12 KW |
| Die heating segments | 5 zones |
| Blowing pressure | 0.8mpa |
| Air volume | 1.6 M³/MIN |
| Cooling water pressure | 0.3mpa |
| Water consumption | 180 L/MIN |
