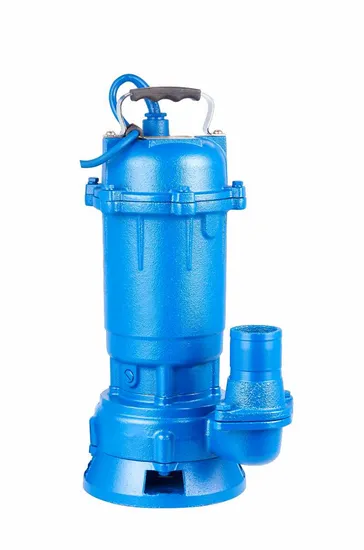

Submersible Sewage Wqd Type Electric Water Pump
| US$80.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WQD
Max.Capacity
>400 L/min
Driving Type
Motor
Material
Cast Iron
Structure
Single-stage Pump
Assembly
Liquid Pumps
Power
Electric
Start Up
Electric Pump
Type
Submersible
Application
Submersible Pump, Sewage Pump
Industry
Water Pump
Media
Sewage Pumps
Performance
Wear Pump
Theory
Centrifugal Pump
Impeller Type
Semi-Open
Impeller Material
Cast Iron
Pump Body
Cast Iron
Motor Body
Cast Iron
Transport Package
Wooden Case
Specification
0.75kw-132kw
Trademark
Guda
Origin
Wenling
HS Code
8413709190
Production Capacity
100PCS/Day
Product Description
Features:
.The whole cast iron design, wear-resistant, durable and nice apperance
.Impeller of semi-open type
Application limits:
.Submersion depth: 5m
.Liquid temperature: up to 40oC
.Max working pressure: 21 bar
.Allowed suspended solid size: up to 12.5mm
Optional available on request:
.Float switch
.Other frequency 60Hz
| MODEL | POWER(KW) | VOLTAGE(V) | FLOW(M3/H) | HEAD(M) | OUTLET (MM) |
| WQD10-10-0.75 | 0.75 | 220 | 10 | 10 | 50 |
| WQD7-15-1.1 | 1.1 | 220 | 7 | 15 | 50 |
| WQD12-15-1.5 | 1.5 | 220 | 12 | 15 | 50 |
| WQD25-7-1.5 | 1.5 | 220 | 25 | 7 | 50 |
| WQD9-22-2.2 | 2.2 | 220 | 9 | 22 | 50 |
