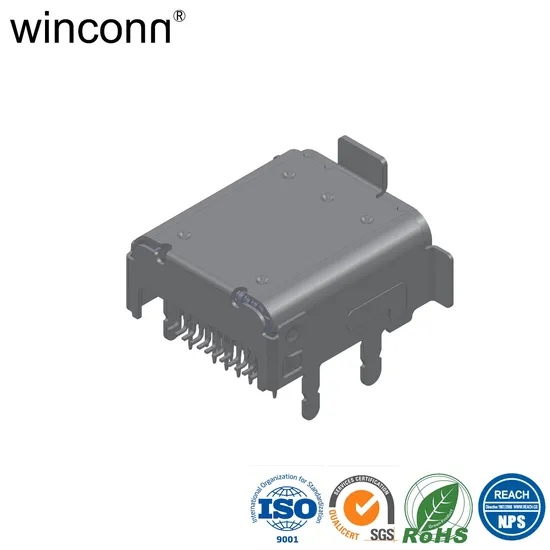

USB Type C 3.1 SMT CH=3.40mm Connector USB Socket
| US$0.01-0.80 | 5,000 Pieces (MOQ) |
Basic Info.
Model NO.
UC-3021-1GNB-RR
Origin
China
Production Capacity
100000
Packaging & Delivery
Package Size
35.00cm * 35.00cm * 35.00cm
Package Gross Weight
30.000kg
Product Description
| Product Description |
P/N: UC-3021-1GNB-RR
| Product Parameters |
| 1.MATERIAL: |
| HOUSING: HIGH TEMPERATURE THERMOPLASTIC |
| CONTACT: COPPER ALLOY. |
| SHELL: SUS. |
| 2.FINISH: |
| CONTACT: Au plating on contact area,Sn(100u" Min.) plating on solder tail, |
| Ni(50u'' Min.) underplating overall |
| SHELL: NI PLATING. |
| 3.ELECTRICAL: |
| CONTACT RESISTANCE: 40 mΩ MAX. |
| INSULATION RESISTANCE: 100MΩ Min. |
| DIELECTRIC WITHSTANDING VOLTAGE: 100V AC |
| CURRENT RATING: 0.5A MIN FOR VBUS,0.25A MIN FOR OTHER. |
| 4.ENVIRONMENTAL: |
| OPERATING TEMPERATURE: -25°C TO +85°C |
