Automatic Glue Bottle Round Oval Color Label Trademark Screening Silk Screen Printer

Product Description

Automatic Glue Bottle Round Oval Color Label Trademark Screening Silk Screen Printer

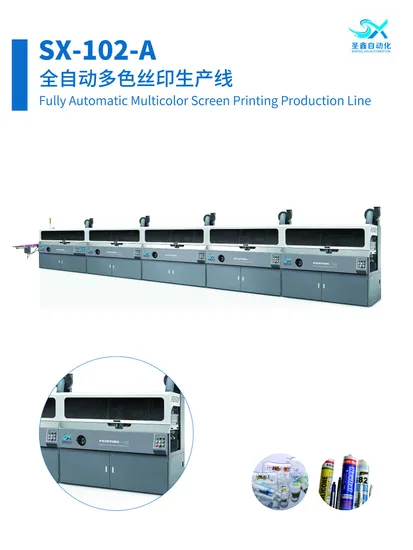

The machine is multicolor automatic screen printer with multifunction. It suitable to print different kinds of round, oval, flat objects. It is widely applied to the package of glass bottles, alcohol bottles and cosmetic container, etc. Widely accepted by the small and medium-sized enterprises due to its high quality price ratio.

Applications:
plastic tube, cosmetic bottles, milk bottles, medical bottles, drinking bottles, lubricating oil bottles, glass silicon, pen sleeves, ceramic, etc.
Features:
1. The innovative transmission system is very steady in passing the bottles, easy to shift between different types of bottles, easy to operate.
2. This machine allows to print up to 5 colors, each module machine is independent and synchronous drive, accurate registration between colors, stable and reliable performance.
3. Controlled by PLC and touch screen display, with kinds of monitor system to ensure the machine running stable at high speed.
4. According to the characteristics of products, this machine can be equipped with kinds of functions such as automatic loading and unloading, orientation, flame treatment, dedusting, automatic registration, non-printing without bottles , and UV Curing system, etc.
5. All components are from German, USA and Japan to ensure the machine quality and stability of printing.
6. Three languages such as Chinese, English and Spanish supported.
7. We can customize machine according to the special products.
Parameters:

Printing speed:	Round 4000pcs / hr	Oval 5000pcs / hr
Printing size:	Round Dia.20-100mm	Length 25-300mm
	Oval Width 25-120mm	Length 25-300mm
Compressed air:	0.6MPa
LPG:	0.15MPa
Machine size:	Main/Aux 1980*1000*1500mm
	Unload conveyor 1700*500*700mm
Unit Power:	Voltage 380VAC, 3-PHASE, 50HZ
UV curing power:	5KW
Motor Power:	1.5KW

Packaging and shipping:
Services: Quick response to your inquiry. OEM, ODM and samples are supported. Best price and engineers available to offer after- sales service in any country. More than 10 years experience to meet your requirements in details. Warmly welcome to visit our factory at any time. One year guarantee. Providing technology support in the whole life of the machine. Any other service you want.
About Us
Shenzhen Shengxin Automation Equipment Co., Ltd is a high-tech enterprise, a professional manufacturer and exporter that is concerned with the design, development and production of high quality fully automatic screen printing machine , hot stamping machine and wine bottle lid assembly line.
Shengxin owns a strong technology level, it has much R&D experience of more than ten years.
Shengxin has imported advanced design concept and production technology from domestic and abroad. Shengxin develops and innovates based on customers demand. Creating value for customers while achieve our self-development.
Shengxin owns variety of products which are being used widely in different industry, such as alcohol packaging, cosmetic packaging, medicine packaging, cleaning product packaging. We have won universal praise due to the high co-efficiency and precision of the machineries.
Shengxin regards the quality as life and always follows the idea "quality comes first". All our employees must accept a very strict job training, and participate in technology process examination to provide a perfect pre-sales service, installation, debugging and training service, after-sales service for our clients.
Our equipment brings you fortune, our service makes you and us succeed. Shengxin is striving forward for leading the automation equipment development.
Production Workflow Chart:
Honor:
Cooperation partners:
Cases:
