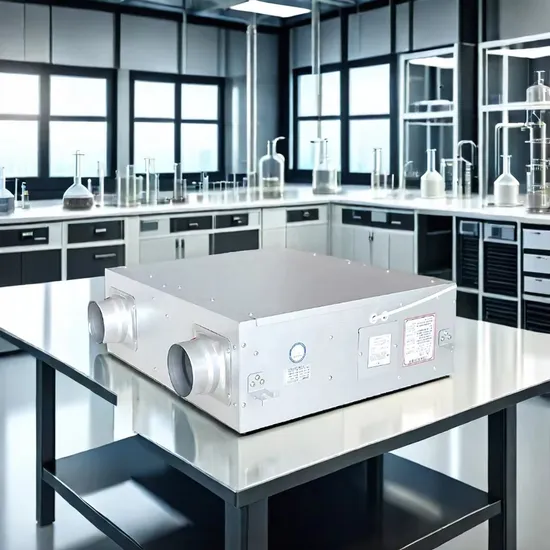

Ceiling Mounted Air Purifier for Hospital Public Facility

Product Description

Bidirectional flow fresh air ventilation fan series dimensional parameter table
Model	A	B	C	D	E	F	G	H	I	A*B
DUT10-15	540	580	590	545	360	95	63	200	100	540*580
DUT15-25	540	580	590	545	360	145	63	200	100	540*580
DUT15-35	560	650	610	600	380	145	63	250	125	560*650
DUT20-50	560	650	610	600	380	195	70	250	125	560*650
DUT20-80	560	650	610	600	380	195	70	250	125	560*650
DUT25-100	560	750	606	680	408	245	80	400	200	560*750
DUT25-150	560	750	606	680	408	245	80	400	200	560*750
DUT25-200	560	750	606	680	408	245	80	400	200	560*750

Model	Power supply	Power(W)		Air volume(m³/h)		Static pressure(Pa)		Noise(dB(A))		Weight
	V/Hz	High	Low	High	Low	High	Low	High	Low	(Kg)
DUT10-15	220/50	126	102	150	120	225	180	36	34	18
DUT15-25	220/50	156	122	250	180	240	195	38	36	19
DUT15-35	220/50	264	230	350	230	290	265	40	37	23
DUT20-50	220/50	320	262	500	390	320	285	43	41	24
DUT20-80	220/50	362	286	800	600	410	355	45	43	23
DUT25-100	220/50	440	352	1000	800	375	360	48	45	45
DUT25-150	220/50	590	510	1500	1150	505	460	50	48	46
DUT25-200	220/50	840	760	2000	1400	535	485	52	50	50

Q:Are you a manufacturer or a trading company?
A:We are a manufacturer with over 20 year experience.
Q: What's the warranty period?
A: One year from the shipping date.
Q:Do you provide free samples ?
A:For the first cooperation, we need to charge the sample and freight cost. And ship out in 3-5 working days after test. Sample cost will be returned once you place bulk order.
Q:Do you accept small quantity for trial order?
A:We accept small quantity for trial order to support your business. But please be advised that it could be difficult to be arranged on our peak season.
Q:What is the lead time ?
A:Sample: 3-5 working days after payment.Bulk order: 15-45 working days, please confirm case by case .
Q:What is your payment term for bulk orders ?
A:We can accept 30% T/T in advance, balance against the copy of B/L Or L/C at sight.
Q:How do you ship the goods?
A:DHL, UPS, FedEx, TNT, Airline, Train,and sea shipping also optional. You can also send your shipping agent to pick up the goods.
Q:Do you accept private label on product ?
A: Acceptable for bulk order at least 500-1000 pcs. If less, confirm case by case.
Q: Do you accept color box packing when quantity is below MOQ ?
A: Most of our items are with free white gift box. We can make color box, but the cost of the printing plate fee will be included in unit price.
