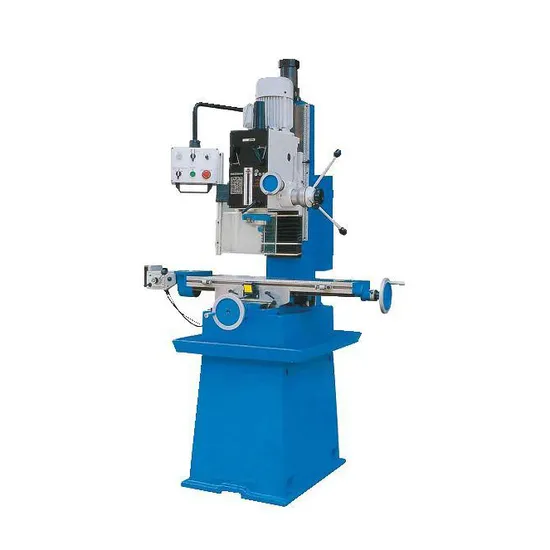

Drilling and Milling Machine (DM7045)

Drilling and Milling Machine (DM7045)

US$2,000.00-2,500.00 1 Piece (MOQ)

Basic Info.

Model NO.
DM7045
Controlling Mode
Artificial
Hole Diameter
<50mm
Automatic Grade
Manual
Precision
Normal Precision
Certification
ISO 9001
Condition
New
Weight
590/680kg
Transport Package
Wooden Case
Specification
1240x960x2240mm
Trademark
SMAC
Origin
China

Product Description


Feature:
Milling, drilling, tapping, boring, reaming
Wide and big table
Milling head up&down by power
Worktable power feed
Micro feed precision
Heavy-duty tapered roller bearing spindle
Positive spindle lock
Adjustable gibs on table
Geared drive lower noise
Accurate position strong rigidity, strong cutting power
Ceelectric box
Specification
Item Parameter
Max.drilling capacity(iron/steel) 31.5/45mm
Max.mill capacity(face/end) 80/32mm
Spindle taper MT3/MT4/R8/ISO30
Worktable size 800×240mm
Worktable travelX/Y 570/230mm
Head tilt left right 90°
Spindle travel 130mm
Spindle nose to worktable 470mm
Spindle center to column surface 285mm
Spindle speeds range(2 steps) 12steps:75-3200r/min
motor 0.85/1.1kw
N.W/G.W 300/350KG
Packing size(L×W×H) 1140×960×2240mm
20'Container 12 sets
Standard Accessories Optional
Draw bar,Adapter,Taper shank for drilling chuck ,Drilling chuck ,Arbor ,T slot bolt ,Washer ,Nut ,Tilted wedge ,Spanner ,Oil gun Cooling system,
Working light,
Spindle power down feeder,
DRO,
depth indicator,
spring collet,
vices,
milling collet
,milling clamp.
Foot stand:
