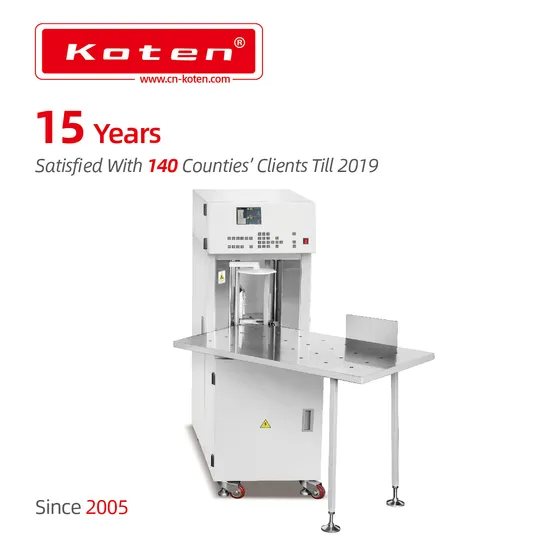

Automatic A3/A4/A5 Sheet Paper Counting Machine for Counting Label, Newspaper, Notebook, Examination/Sketch/Bible Paper and Instruction Book Counter Machine.

Product Description

Introduction.
The High Speed Paper Counting Machine has the features of high precision counting, suitable or all kinds of different thickness paper, with the function of mark paper inserter. It can be setted up by customers for different quantity paper counting.
Counted Samples.
Functions.
1. The High Speed Paper Counting Machine is a high-tech product we committed to develop with superior performance, it has a 7-inch color screen computer and servo motor control
2.Any kind and any thickness of paper can be precise and high-speed counting. Different kinds of paper can be mixed counting simultaneously.
3.The paper counting machine is rich in features to meet the needs of different users, in addition to the standard paper counting mode, there is the random paper label insert function, which can nark for different quantity of paper;
The paper quantity detection function is for the check whether the predetermined number and actual number matches or not;
The specified number counting function is for sorting out the required number of paper from the paper-pile.
4.Auto-diagnostic function. The operator can know from a clear error message displays on the platform which shows whether the machine fault is caused by their own operating mistakes, or the machine itself abnormal operating conditions.
5.It has a paper label fast changing structure.
Main Specifications.

Model	SZJ-800
Suitable Paper	25-220g
Paper Size	Min. 100X150mm\Max.700X1100mm
Max. Height of paper	300mm Max.
Power	220±10V50Hz
Motor power	0.4KW
Width of workable	700X1100mm
Height of worktable	760mm
Machine size	1030X1080X1550mm
Machine weight	310kg
Mark label size	W6mm\L70m
Consumable power	600W
