Automatic Paper Collating Gathering Machine Paper Gathering Machine for Newspaper

Product Description

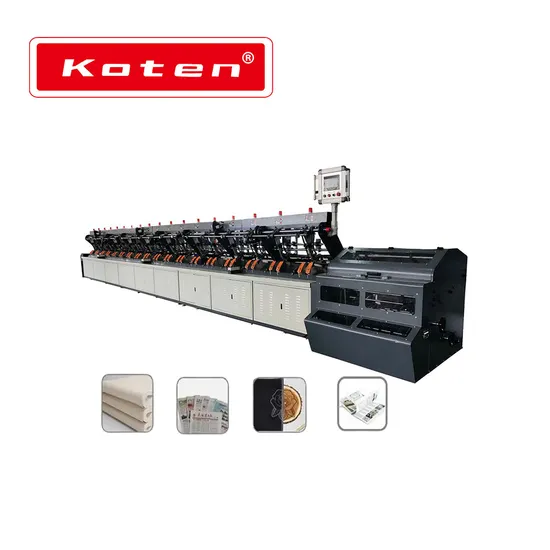

Gathering Machine CY-PY400
CY-PY400 gathering way by vising paper, the maximum speed can reach 5000 copies per hour,suitable for desk calendar, book, book block, picture album, single sheet, etc.
Advantage 1. The unique spindle and aluminum wheel design improve the production efficiency.
2. The machine design fully draws on and optimizes the original technology structure with strong assembly and selectivity. 3. Fast page matching, replacing the traditional manual page matching.
4. The equipment structure is practical, high-end and generous.
5. Simple operation, easy to learn.
6. Variable frequency stepless speed regulation, easy control.
7. More and less paste automatic detection alarm.
8.Stations can be customized(6,8,12,14,16,18,20,22,24)
Screen
Large touch screen, easy to operate Vise Clamp
It has great advantages for folding pastes, stitching books, plastic books and other thick products.The clamp adopts steel die casting process to ensure the strength, accuracy and finish of the clamp Sucking Head
Vacuum suction paper, the position of the suction cup can be adjusted and the suction size can be adjusted Warning Unit
Detecting lackpage and multipage Feeding Unit
Stacking height 300mm,can add paper without stopping;Handle screw design, easy to change and adjust the product Vacuum Pump
High power vacuum pump to ensure suction on thick products

Gathering Size	100*100mm-400*300mm
Max. Machine Speed	4800 times/hour
Max. Speed	5000 copies/hour
Max Paper Stacking Height	300mm
Each Station Size	540mm*1100mm*1650mm
Collecting Unit Size	1750mm*1320mm*980mm
Voltage	380V
Power	6KW

Name	Brand
PLC	Mitsubishi(Japan)
Screen	WEINVIEW(TaiWan China)
Contactor	CHNT(China)
Motor	Customize(China)
Vacuum Pump	China
Petrol Pump	China
Switching Power Supply	MingWei(TaiWan China)
