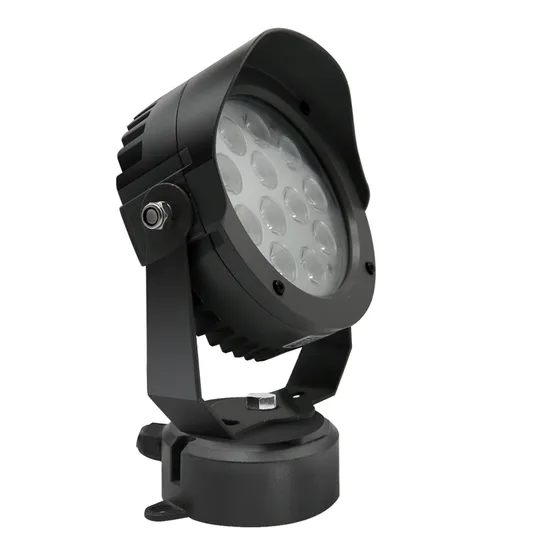

48W IP65 RGBW Outdoor LED Garden Spot Lights

Product Description

Product Information
Input voltage AC85-265V or DC12V-24V,built-in Constant current driver. IP65 High Power LED Landscape Spot Light, 12W/24W/36W/48W LED landscape light, 36w RGB LED yard light, low voltage landscape lighting, LED spike light

Main Specification
Housing: 12# Die-casting outdoor powder coated aluminum T=60-80µm
Glass: Tempered glass.T=4mm
Lens: Optical lens, efficiency≥85%
Cable gland: IP68 PG-9 copper and nickel coated
Gasket: Molding shaped silicone double seal
LED: CREE XP-E LED /EDISON LED
PCB: Excellent heat conductivity aluminum,coefficient of Heat Conductivity≥2.0w/mk
LED Colour Temperature: 2700K·3000k / 4000K·6000k
Driver: Constant current output
Single color LED=1-circuit output
RGB 3in1 LED=3-circuit output
RGBW 4in1 LED=4-circuit output
Power cable: H05RN-F2x0.75mm², L=1m(low voltage)
H05RN-F3x0.75mm², L=1m(high voltage)
H05RN-F4x0.75mm², L=1m(for RGB)
H05RN-F5x0.75mm², L=1m(for RGBW)
Operating Temperature: -20ºC~40ºC
Mounting base: Powder coated die-casting aluminum
Spike: PVC
Products Model

Item No.	Light source	Lens beam angle(°)	Consumption(watt)	Input Voltage(V)	Ik rate
832121D/832121DH	12x1W	8°/15°/20°/30° /45°/60°	12.5	DC24V/AC100-240V	07
832122D/832122DH	12x2W	8°/15°/20°/30° /45°/60°	25.4	DC24V/AC100-240V	07
832126D	12x3W RGB 3in1	20°/30° /45°/60°	35.5	DC24V	07
832129D	12x4W RGBW 4in1	20°/30° /45°/60°	48.0	DC24V	07

Products Dimension(mm)

Product Pictures


Optional Accessories

Product View

Product Application
Applicable to Garden, lawn, green belt, park landscape design, garden pedestrian street, parking area, road lighting, etc.
