Powder Coating Paint Manufacturing in Twin Screw Extrusion

Product Description

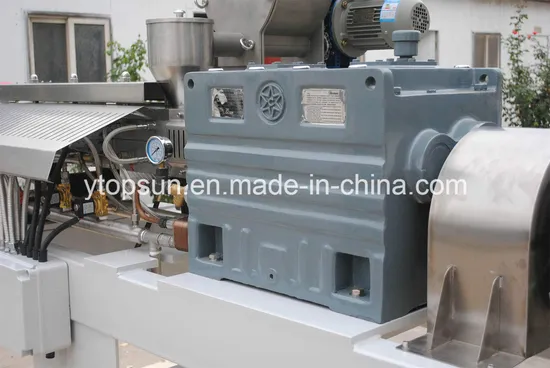

High torque & High Speed Rotation Twin-Screw Extruder:
Main Features:
*Easy to use and easy to clean
*Advanced heating and through-shaft cooling
*specific power and torque maximise output without wasting energy
*Torque limiter to protect the drive train
*Accurate and responsive temperature control over barrel
*Split design of barrel and liner inserts for easy cleaning and maintainence
*Top & Side feeding options
*Stainless cover for safety and appearance
Technical Parameters:

Model	Capacity (kg/h)	Diameter (mm)	Screw Length (mm)	Screw Speed (r/min)	Main Motor (kw)	Feeder Motor (kw)	Heating Power (kw)	Overall Dimensions (mm)
TSX-40	80-260	40	16D	0-800	11/15/18.5	0.55	8	1850*700*1750
TSX-52	150-450	52	16D	0-800	22/30/37	0.75	10	2700*900*2200
TSX-65	400-1000	65	16D	0-800	45/55/75	1.1	12	2900*1000*2400
TSX-75	800-1200	75	16D	0-800	75/90	1.5	16	3100*1200*2500
TSX-85	1200-1800	85	16D	0-800	90/110	2.2	20	3700*1500*2900

Company:
Dongsun is a leading manufacturer in China of Powder Coating Production Equipments, i.e. Mixers, Extruders, Cooling Belt and Air Classifier Mill. We inherit 30 years of experiences in this industry and have exported to nearly 30 countries and regions in the past 10 years, and win widely good reputations.
We passed CE certification approval and ATEX explosion resistant test, etc. international standards, we do know how to meet the diversified and customized made requests of our customers.
Our everlasting business philosophy: consistant quality, effective communication, responsible service.
