H20series M2m DTU GSM IP Modem

Product Description

Product Description H20series M2M DTU GSM IP Modem

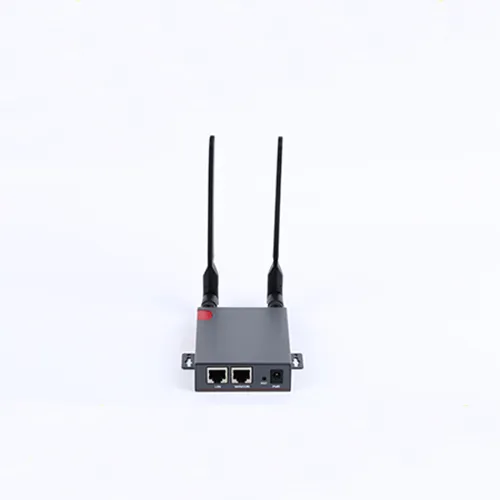

H20series cellular router is a kind of internet of things wireless communication router, use FDD/TDD-LTE 4G mobile broadband network type to provide convenient and high speed net transmission function.

This series of products use high performance industrial 32 bit communication processor, flush bonding real-time operation system as software supporting platform, provide save, high speed, stable 4G wireless router net, it's a wireless router with 2 Ethernet port RJ45 and communication serial port.
It can be used in ATM, POS, Vending, Kiosk, finance, postal, smart power grids, smart transportation, environment monitor, fire protection monitor, security, water conservancy, public safety, advertising release, industrial control, earth quake monitor, meteorological watch, instrument monitor.etc
Product Parameters Details
Wireless Specification
1. EGSM900/GSM1800
2. Compliant to GSM phase 2/2+
3. Support DTMF
4. Support SMS and CSD function
5. Standard AT command interface
Hardware System
1. High-powered MCU, 100M
2. Interface:
RS232/RS485 serial port, rates: 110~230400bits/s
Indicator lights: "Power", "ACT", "Online"
Antenna interface: Standard SMA female interface, 50 ohm
SIM/UIM interface: Standard user card interface
Power interface: Standard 3-PIN power jack
3. Power supply:
Standard power supply: DC 12V/0.5A
Power range: DC 5~35V
4. Wireless module:
High-powered industrial GSM module
5. Size:
Outline dimension: 102X73.5X25.5mm
6. Weight: 450 g
7. Others:
Operation temperature: -25~+65C
Storage temperature: -40~+85C
Humidity: 95% (unfreezing)
Software function
1. Adopt smart online keeping technology to make sure that IP MODEM is always online
2. Support transparent SMS data transfer
3. Support several work modes
4. Support server and client functions
5. Support CSD function
6. Support hardware and software WDT
7. Reporting the status of data transfer
8. Standard AT command interface
9. Support common MODEM function
10. Support console upgrade firmware
11. Support multi OS, such as WINDOWS, LINUX, SCO UNIX etc.
Model:

Homtecs	H20 Series Industrial Cellular Router
Model	4G	3G	DL	UL	Interface	WiFi	GPS
H20-FALT	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN
H20-FALT-W	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN		Y
H20-FALT-G	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN		Y
H20-FALT-GW	FDD/TDD LTE	UMTS	100Mbps	50Mbps	2XLAN	Y	Y
H20-FA2T	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS232
H20-FA2T-W	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS232	Y
H20-FA4T	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS485
H20-FA4T-W	FDD/TDD LTE	UMTS	100Mbps	50Mbps	1XLAN 1XRS485	Y
H20-WALT		HSPA+	21Mbps	5.76Mbps	2XLAN
H20-WALT-W		HSPA+	21Mbps	5.76Mbps	2XLAN	Y
H20-WALT-G		HSPA+	21Mbps	5.76Mbps	2XLAN		Y
H20-WALT-GW		HSPA+	21Mbps	5.76Mbps	2XLAN	Y	Y
H20-WA2T		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS232
H20-WA2T-W		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS232	Y
H20-WA4T		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS485
H20-WA4T-W		HSPA+	21Mbps	5.76Mbps	1XLAN 1XRS485	Y
