Factory Price F20 Series UV Laser Marking Machine

Product Description

Product Description

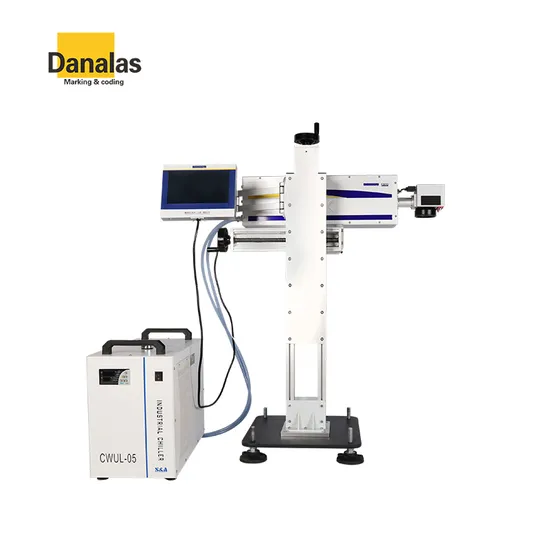

DANA F20 series UV laser marking machine excels in ultra-fine marking on production line. The UV laser's minute focus spot enables exceptionally fine printing, making it ideal for detailed marking on food and pharmaceutical packaging materials.
1.The F20 series UV laser marking machine comprises of a UV laser, Galvanometer, Field mirror, Touch-Screen Controller, and system support, with the aluminum shell for stability and durability. Additionally, it offers optional water cooling or air cooling systems tailored to the environmental needs of customers' workshops. 2.The UV laser, with a wavelength of 355nm, achieves its marking effect by directly interrupting the molecular chains of materials using short-wavelength light. This method significantly reduces mechanical and thermal deformation (cold processing), making it particularly suitable for materials that are sensitive to thermal radiation. 3.The system incorporates an automatic coding function, capable of generating variable data such as serial numbers, batch numbers, and dates tailored to specific user requirements on user requirements. It is compatible with popular software applications including AUTOCAD, CORELDRAW, PHOTOSHOP, CAXA, and others. It supports a wide range of file formats including PLT, PCX, DXF, BMP, and more. 4.The machine offers four selectable power levels to meet the requirements of different materials, marking speed and marking effect.
Applications

Advantage
1.Ultra-fine printing Compared with CO2 laser and fiber laser, UV laser has thinner printing lines, and can print a small two-dimensional code on a small package. Ultra-fine printing: Thinner laser printing line than CO2 laser and fiber laser enables the UV laser marking deliver ultra-fine printing on
2.More beautiful effect UV laser marking machine uses a narrow pulse width of laser, and the processing material action time is short, the thermal effect is small, the material is not deformed and not burnt, the effect of marking is more beautiful.
3.Large field Marking range up to 500*500 mm
4.Free definition Support marking content: bar code, text, graphics, two-dimensional code and other forms of free combination
5.Unaltered permanent marking
6.Easy to integrate Customized bending neck, to mark in any direction and Angle in various working conditions.
Product Parameters

DANA F20 Series Laser Marking Machine Specification
Laser-type	UV Laser Wavelength:355nm
Power Output Class	5W/10W/15W/20W
Focal Length	220mm(Standard Equipped)
Maximum line marking speed	25m-30m/min (according to marking content and requirements)
Marking parameters
Marking Range	110mm × 110mm; Max: 500mm × 500mm
Marking lines	Set any line numbers within the valid marking range
Min Line Width	0.01mm
Production Line Speed	Depending on the coding content
Character Height	0.4-70mm
Typeface	Single line font, dot matrix font, True Type font
Marking Content	Text, Graphics, Bar code, Two-dimensional code, Dynamic serial number, real-time clock, TXT file, RS232 communication data and so on
Marking Angle	Any Angle, Four-dimensional adjustable
Operation Interface
Monitor	Industrial Touch Computer
Operating Language	Chinese, English and other Languages
Operating System	Linux
Input Method	Handwriting

Environment Requirements
Protection Degree	≥IP54
Cooling Way	Water-Cooling
Working Temperature	-5-45ºC
Humidity	80% RH,Non Condensing
Supply Power	220V,1KVA
