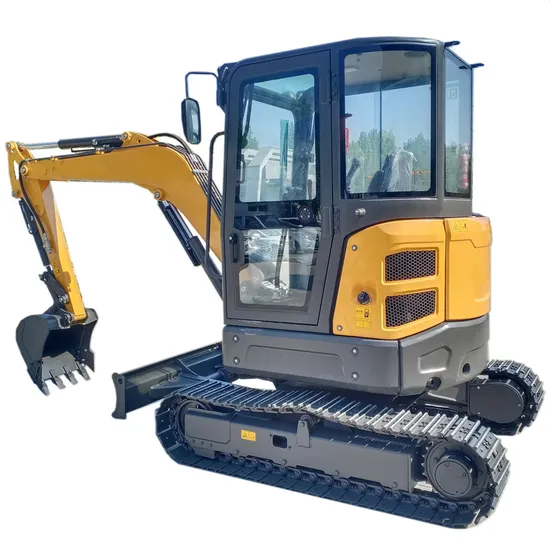

3.5 Tons Heavy Earthmoving Machinery Excavator Compact Crawler Used Digger Excavator

Product Description

Product Description
>> IntroductionThis mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose,landscaping of municipal departments, orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.


Detailed Photos
>> Characteristic>> The complete vehicle adopts original engine that is imported from international renowned brand, Also, it introduces the constant power control system to give full swing to the engine power, and to provide the excavator with strong power.>> hydraulic Medium excavator has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.>> Leather seats, with seat belts and handrails, can be adjusted before and after, with adjustable rear corners.>> German MA brand continental hydraulic hose is an international brand with stable and reliable quality.>> The external hydraulic hose is equipped with spring retainer and spiral protection hose to avoid friction, collision, bending and other damage>> The action levers are equipped with dust covers and portable handrails>> The main console is composed of three parts. The overall shape is like a "fist", rich in tension, streamlined trend design, calm and domineering, which is in line with the aesthetics of the East and the West. The connector adopts stainless steel countersunk head gasket + countersunk head hexagon socket screw, which has good fastening and decorative effects.>> The instrument integrated cover at the front is easy to disassemble, and the later maintenance of electrical components and main valve is particularly convenient


Product Parameters

ENGINE
Emission Standard	Euro 5,EPA4
Make /Model	KUBOTA /D1703
Power /Rotation speed	18.5kw(25HP)@2200rpm
Number of cylinder	3
Type	In-line,water cooled, 4-stroke ,mechanical pump, normally aspirated
Max.torque	97.4N.m/1500rpm
Displacement	1.642L
TRACK DRIVING SYSTEM
Maximum Travel speed(High/low)	4.4/2.4km/h
Width of steel track shoe	300mm
Carrier roller(Each side)	1
Supporting roller(Each side)	4
PERFORMANCE PARAMETER
Standard Bucket capacity	0.12m³
Swing speed	12rpm
Maximum Grade ability	58%(30°)
Ground pressure	32Kpa
Maximum Bucket digging force	30.4KN
Maximum Arm digging force	18.2KN
Hydraulic system pressure	22.5Mpa
Machine weight	3810kg
Boom length	2535mm
Arm length	1400mm
Fuel tank capacity	40L
Hydraulic oil tank capacity	44L
Engine oil capacity	7L
Radiator capacity	3.8L
Final drive	2*0.7L
MACHINE SIZE
Overall dimension (L*W*H)	4915mm*1720mm*2525mm
Axle base(Track length on ground)	1670mm
Length of rubber track	2154mm
Track gauge	1420mm
Minimum Ground clearance	295mm
Swing radius at tail	860mm
Swing radius at front	2538mm
Height of blade	350mm
WORKING RANGE
Maximum Digging height	4800mm
Maximum Dumping height	3406mm
Maximum Digging depth	3208mm
Maximum Vertical digging depth	2957mm
Maximum Digging distance(working radius)	5480mm
Maximum digging distance (on ground)	5359mm
Minimum swing radius	2530mm
Max.height when min.swing radius	3655mm
Maximum Lifting height of blade	365mm
Maximum Cutting depth of blade	385mm
Boom swing angle(Left/Right)	55°/65°
