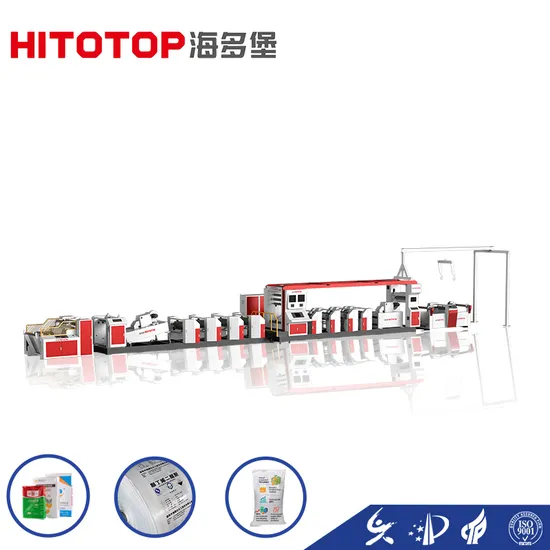

Unit Type Flexographic Printing Machine Without Roller Replacement
| US$80,000.00-150,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
HDB-YRJZ844SC800
Printing Page
Double Faced
Printing Color
8 Colors
Anilox Roller
Metal Anilox Roller
Dryer
UV& IR
Type
Ink Jet
Embossing Structure
Rotary Letterpress
Structure
Satellite
Application
Pre Printed Carton
Automatic Grade
Semi-Automatic
Printing Speed
90m/min
Transport Package
Firstly Wrapped by Plastic Film
Trademark
hitotop
HS Code
84431600
Production Capacity
20 Sets /Mounth
Product Description
This type of equipment is a roll-to-roll printing machine developedand manufactured by our company based on a number of thelatest patented technologies. it adopts a speed-adjustable plateroller structure to achieve the function of not changing the plateroller. The flexographic plate (resin plate or rubber plate) is the typeplate. Using liquid ink (environmentally friendly ink or oil-based ink)the ink is transferred through a ceramic anilox roller for clear andhigh-speed transfer printing. The equipment is widely used in theprinting industry of plastic woven fabrics, non-woven fabrics,plastic films, paper and other materials.| MODEL | HDB-YRJZ844B-800ZN |
| Printing Material | PP Woven frabric roll (60-120G/M²) |
| Process Color Set | 8 color |
| Cloth Roller Width | 800MM |
| Rewinding And Unwinding Diameter | ≤1500MM |
| Double-sided Tape Thickness | 0.2MM |
| Color Set Range | Longitudinal 360,horizontal ± 15MM (no stop machine) |
| Single-sided Longitudinal Overprinting Accuracy | ≤±1MM |
| Single-sided Horizontal Registration Accuracy | ≤±2MM |
| Printing Speed | 80-150PC/min(Depends on length of bag and ink) |
| Heating And Drying System | Electric heating, closed hot air circulation |
