Hot Sale 500L 7bbl 800L 1000L Conical Fermentation Tank From Direct Factory

Product Description

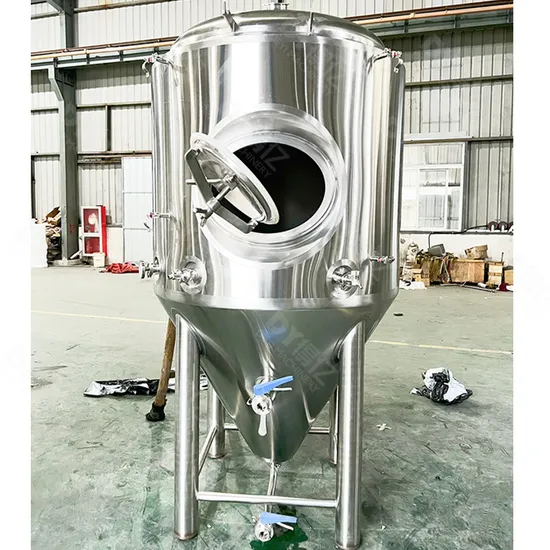

DEYI FERMENTER
DEYI Beer Fermentation Tank with cooling jacket, insulation and cone bottom. Stainless Steel Fermentation Tank completed with a top dished head, fabricated going over to the body in rounding off shape.
All welding is done under protection-gas atmosphere; inside properly ground, outside ground, cooling jackets welded in the Fermentation Tank.
We can provide NECESSARY certifications for fermentation vessel to meet government requirements in different countries.
SEE OUR CONFIGURATON OF BREWERY TANK AS BELOW PHOTO:

Technical Parameters
Effective volume (L)	Inner Diameter of tank(mm)	External Diameter of tank(mm)	Height of tank(mm)	Overall Height(mm)	Conical degree
500L	850	1010	750	2085	60°/90°
700L	900	1060	1000	2388
1000L	1050	1210	1000	2547
1500L	1250	1410	1000	2760
2000L	1350	1510	1220	3103
2500L	1500	1660	1220	3262
3000L	1500	1660	1500	3542
3500L	1600	1760	1500	3648
4000L	1700	1860	1500	3753
5000L	1800	1960	1750	4110
6000L	1950	2110	1750	4269
7000L	2000	2160	2000	4572
9000L	2100	2260	2500	5193
We CAN customize the equipment ON REQUEST!

Specifications
Capacity available from 1/2 bbl to 200bbl
SS 304 construction
Top dished head with pressure vacuum relief valve
Top manway or side shadowless manhole
Dry Hopping port with cap
Sanitary rotary spray ball
PU foam insulated
Cooling jacket on cylinder and cone bottom
The optional jacket for hot water heating in cold area to ensure good fermentation
Side CIP arm assembly with bung valve and pressure gauge
Sanitary thermowell
Sample Valves
Cone racking arm
60 degree to 90 degree cone bottom
Bottom discharge
Four legs adjustable feet, optional for anti-seismic
Internal shell: 2B, External Shell polished #4

Deyi Tricalmp Sample Valve
on our beer conical fermenter
CO2 inlet in Deyi Beer Fermenter

Shipping by containers
Fix all tanks to make sure will be safe !!
