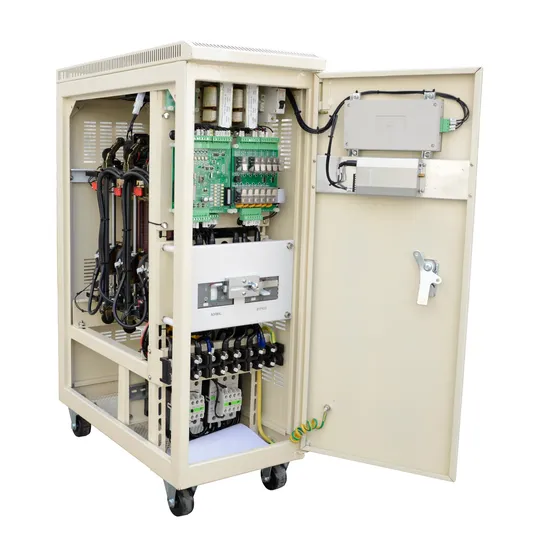

Medical Specific Power Conditioner (SBW-YL-10~1000kVA)

Product Description

SBW-YL-10~1000KVA
Overview
The requirement of high quality mains supply for modern computerized medical equipment is high. Electrical noise and transients on the line can cause "artifacts" in the digital image which may result in misdiagnoses. Maintaining correct incoming mains supply to many types of medical imaging equipment is crucial to obtaining consistently usable exposures.
MODERN has for many years manufactured power conditioner for medical system used to provide clean power to medical imaging and therapy equipment. Back from 1992, we are the first batch of power conditioner supplier for GE(Beijing) Health Care. World famous Phillips, Hitachi, and Shimadzu also adopt our products.
Features and benefits:
* Wide voltage regulation range; 165-275V
* 15-100KVA, three phase 380/220V, other sizes up to 225KVA on request
* Isolation transformer output on request
* Individual regulation for each phase on request
* High accuracy: ±1.5%
* High efficiency approx 98%(without isolation transformer)
* Continuously working, can withstand short time overload
* Over voltage, under voltage, over current auto protection
* Single-way output or multi-way output on request
* Surge protector, EMI filter on request
Applications:
* CT scanners
* MRI systems
* X-ray
* Computerized angiography systems
* Nuclear medicine equipment
* Radiation therapy machines
* Medical equipment manufacturing workshop

Model			DBW	SBW
Capacity (KVA)			10~1000KVA
Input voltage			Single Phase: 220V±20%
			Three Phase:380V±20%
Output voltage			Singel Phase:220V- 230V(Adjustable)
			Three Phase: 380V - 405V(Adjustable)
Output accurac y			±1-5% Upon your request
Frequency			50Hz
Insulation resistance			≥2MΩ
Noise			<55dB
Voltage regulation mode			Independent phase regulation
Wave deformation			Nil
Insulation class of transformer			H class
Wire system			Single Phase
			Three Phase : 3-Phase-4-wire-system or 3-Phase-5-wire system
Operation time			≥80,000 hours
Long Life Time Carbon brush			140,000 times with only about 0.01mm roller carbon brush abrasion
Method of voltage regulation			Regulation transformer with servomotor
Insulated strength			Single phase: 2000V/1min without puncture
			Three phase: 2500V/1 min without puncture
Package Material			Carton for batch volume, Wooden packing for small volume
Efficiency			>96%
Electrical safety			CE equivalent
Operating temperature			-20 °C to +50 °C
Altitude			<1000m
Relative Humidity			<90%
Material of Sliding coil			Copper, and inner and outer winding both
Functions			Malfunction protection;Short-circuit protection,
			Lack Phase protection; Manual bypass,Safe start
			Alarm and silence, Under/Over voltage Protection
Optional Functions			Auto Power-on;Isolation Transformer; Surge Protection;Remote Monitor
