High Speed Double Extruder Plastic Recycling Machine for PE

Product Description

Product Description

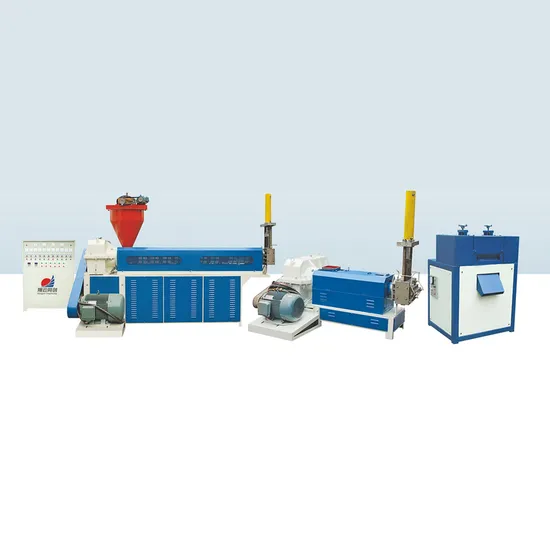

Double screw plastic recycling machine
It is composed of two screws, one long and one short.First put the plastic fragments into the feeding cylinder, heated by the screw and plasticized,extrude noodle shaped plastic strips, cooled by the stainless steel water tank, then cut the noodle become recycled plastic particles.
This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, pelleting with an extruding machine at the same discharging speed synchronistic ally. The unit is easy to operate, with a high output, steady performance, and favorable economic benefit.
If you need a recycling machine for other materials, you can also contact us to send a message and we will provide you with a suitable machine.

Product Parameters

Model	XY90-90	XY120-110	XY150-130
Sub material	HDPE,LDPE,LLDPE,PP
Screw diameter	90mm+90mm	120mm+110mm	150mm+130mm
Screw length	2970mm+900mm	3960mm+1100mm	4950mm+1300mm
Max. output	60-80kg/h	80-100kg	150-200kg
power supply	380v,3p,50hz(Power supply is different, the price will change)
Machine weight	1500kg	2800kg	3600kg
Cutting machine power	2.2Kw	3.3Kw	4Kw

Detailed Photos


Certifications

Packaging & Shipping


Company Profile



FAQ
1. Are you factory or trading company ?We are factory specialized in plastic machine for many years, also we have the right to export goods by ourselves.2. Where is your factory? How can i visit your company?Our factory is located in Ruian city,zhejiang province, China.
Its about 40 minutes from shanghai by plane(4 hours by train). We will pick you up on airport or station.Welcome to visit our factory~3. How long is your delivery time?Normally our delivery time is 15-30 days. If you need it ugently, we can make it about7 days.4. What are your terms of payment?We accept 30% deposit, balance before shipment. And Irrevocable L/C at sight. 5. What package do you use for the product?Be Coated with anti-corrosion oil, and covered with plastic film, wooden box package need extra cost. 6. Does your factory provide installation service?Our engineer can go to customer factory to installation. Customer should prepare materials used to testing the machine in advance and should be responsible for the cost of supplier's technician, including round air tickets, visa cost, accommodation and salary 100USD/Day per person since the day start out until the day arriving at factory.7. What's your warranty policy?12 month guarantee and whole life maintance.8. What is your company after sale service?We would express the free replacement parts as soon as possible.
