ZICAR furniture PVC and ABS Pre milling corner rounding Edge banding machine edgebander automatic

Product Description

ZICAR wood automatic pvc woodworking edge banding machine Features
Introduction:Edge banding machine is a kind of woodworking machinery. It belongs to the category of plate machinery. Which is used for edge banding as the name suggests. The traditional manual operation process is completed with highly automated machinery. Including conveying -pre milling- gluing - end cutting - Fine trimming - scraping -buffing. and many other processes.

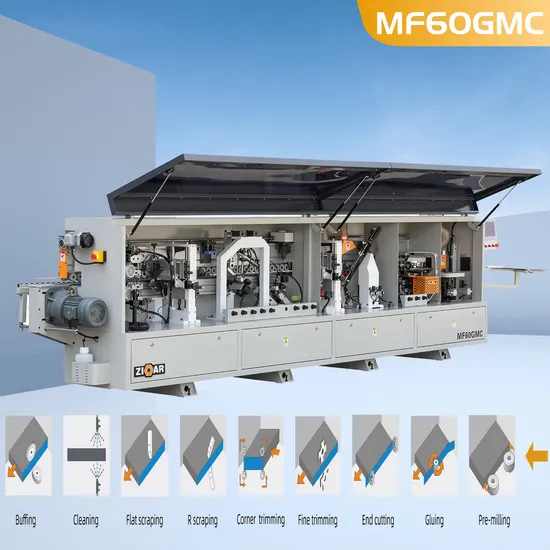

Divided into manual edge banding machine and fully automatic edge banding machine, MF60GMC belongs to automatic edge banding machine, with Pre-milling - gluing - end cutting- fine trimming -corner trimming-r scraping flat scraping -clean- buffing functions, can be working with linear workpieces
Product Parameters

Model	MF60GMC
Panel Width	Min.140mm
Panel Thickness	Min.50mm
Edge Thickness	0.4-3mm
Feeding Speed	16m/min
Working Pressure	0.7Mpa
Net/Gross Weight	1610kg
Total Power	14.5Kw
Overall Size	5350*760*1400mm
Packing Size	5450*860*1500mm

Detailed Photos
Touch Screen Control Panel
convenient operation, quick response,and can display error alarm at the same time, convenient for maintenance
Pre Milling
Remove small burrs on the board
Gluing Unit
With high quality coated gluing pot ensure easy and perfect gluing cleaning.
End Cutting And Fine Trimming Units
Two high speed motors for end cutting,make sure the end cut stable and perfect
Corner Rounding Unit
The corner rounding unit provides the perfect "finish" of the workpiece corner.
Scraping& Buffing
It can smoothly trimmed edges for a perfect visual appearance
buffing unit effectively clean off the glue residue on the edges
Cleaning And Buffing Unit
The buffing units are equippedwith cotton brushes. To clean and polish the top and bottom part of the edge and to give a super finish for any edging materials.
