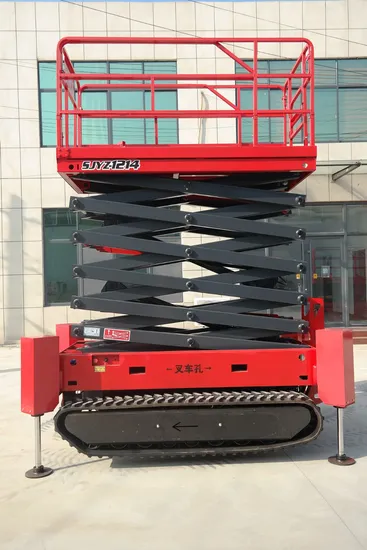

Fully Automatic Mobile Lifting Platform Electric Lift Table 10m Elevator Scissor Lift Tables

Product Description

Product Description
Product Parameters

Model	HTLP0.3-12
Safe working load	320kg
Safe working load of extension	113kg
Maximum number of	2
Maxdmum working height	12m
Maximum platfomm height	10m
overall length	2600mm
overal width	1170mm
Overall height (fence not folded)	2520mm
Overall height (fence folding)	1820mm
Working platfom size (length x width)	2400mm*1170mm
Platfom extension size	0.7m
Minimum ground clearance (retracted)	0.1m
Minimum ground clearance (lifting)	0.019m
Wheelbase	1.89m
Minimum tuming radius (inner wheel)	0
Minimum tuming radilus (outer wheel)	2.2m
Lifting motor/ drive motor	24v/4.0kw
Machine ground speed (stowed)	3.5km/h
Machine travel speed (lifting state)	0.8km/h
Up/down speed	80/90 sec
Battery	6V/230Ah
Charger	24v/25A
Max Ciimb Capabilty	25%
Maximum allowable working angle(indoor / outdoor)	2%/3%
WVeight of whole machine	2800kg

Packaging & Shipping
Company Profile
Shandong Hightop Group is a large-scale engineering construction machinery and equipment manufacturing group integrating scientific research, production and service. Its headquarter is located in Jining City, Shandong Province, covering an area of about 133,000 sq meters and a total of more than 300 employees.Hightop group is "Specialization, Refinement, Distinctive, Novelty" honorary enterprises of Jining city, and has introduced as a key project enterprise by goverment of The Economic and Technological Development administrative district.The Hightop Group manufactures and sells mini excavators, skid steer loaders, lawnmowers, sprayers,lift platform and other products.Hightop Brand excavator is No 1 of market share at near 5 years in mini excavator exporting market.Hightop conducts business in Europe, North America, South America, Southeast Asia and other area of the world.Until now, Hightop brand product have been exported to more than 177counties and regions.At the same time, Hightop has 10 overseas warehouse distribution bases in the world, including 2 in the United States, 1 in Germany, 1 in the United Kingdom, 2 in Spain, 2 in Poland, 1 in Russia, and 1 in Saudi Arabia.Quality is the life of Hightop Group. Technological innovation is Hightop's vitality, excellence is the artisan spirit of Hightop to abide. Until now, Hightop group has obtained 28 national patents, 21 trademarks and 3 copyrights.Hightop has got ISO 9001 international quality system certification, European Union CE certification, SGS certification, Germany TUV and France BV to meet the international different market demand.We believe the science and technology always change the world. In the future, Shandong Hightop Group will strive to build an international first-class brand of excavators and first-class enterprise, to create contribution to society, to create value to customers, and to make happiness to the employees.
