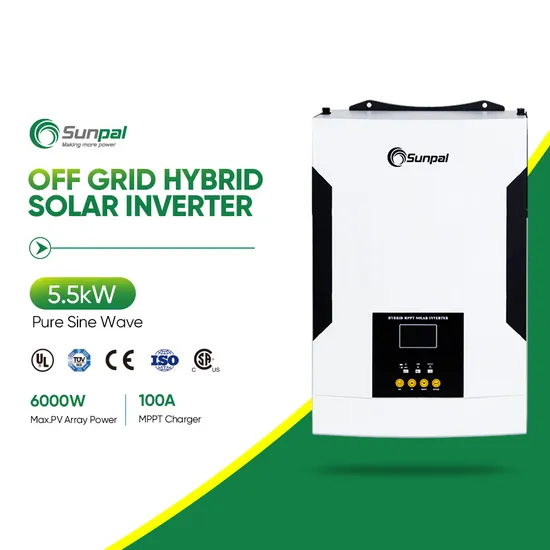

5kw 5kVA 48V Solar Hybrid Inverter off Grid Built-in MPPT Charge Controller Inverter
Basic Info.
Model NO.
Sunpal Off Grid Inverter
Nature of Source Flow
Active Inverter
Phase
Single
Output Power
3-5kw
Certification
SAA, CE, ROHS, ISO9001, IEC
Brand
Sunpal
Type
DC/AC Inverters
Power Source
Solar Power
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Model No.
Sunon PRO 5.5K
Rated Power
5000W
Output Voltage
220-230VAC
Input Voltage
90-280VAC
Frequency Range
50 Hz/60 Hz (Auto Sensing)
Maximum Efficiency
98-99%
AC Voltage
230VAC
Weight
5-11kg
Protection
Overload
Battery Type
Lead Acid \ Lithium \ Gel
Communication
RS485/WiFi (Optional)/GPRS (Optional)/DRM(Australi
Application
Solar Power System Home
Output Waveform
Pure Sine Wave Output
Transport Package
Carton with Pallets
Specification
543*394*204mm/11kg
Trademark
Sunpal
Origin
China
HS Code
8504403090
Production Capacity
1000
Product Description
Product DescriptionOff Grid Inverter Block Diagram
Technical Datasheet
| Model | SUNON PRO 3.5K | SUNON PRO 5.5K |
| The rated power | 3500VA/3500W | 5500VA/5500W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280VAC(UPS), 90-280VAC(Appliances) | |
| Frequnecy Range | 50Hz/60Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Model) | 230VAC + 5% | |
| Surge Power | 7000VA | 11000VA |
| Efficiency(Peak) | >90% | |
| Transfer Time | 10MS(UPS),20MS(Appliances) | |
| Wave form | Pure sine wave | |
| No load current | 1.0A | 1.1A |
| BATTERY | ||
| Battery voltage | 24VDC | 48VDC |
| Low battery alarming voltage | 22.0VDC | 44.0VDC |
| Low battery cut off protection voltage | 21VDC | 42VDC |
| Low battery recovery voltage | 23.0VDC | 46.0VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 23VDC | 64VDC |
| MPPT SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Power | 5000W | 6000W |
| MPPT Range at Operation Vol | 120-450VDC | |
| Maximum PV Array Open Circuit Vol. | 500VDC | |
| Number of MPPT trackers / Max output current | 100A | |
| Maximum AC Charge Current | 60A | |
| Maxmum Charge Current | 100A | |
| Maxmum Efficiency | 98% | |
| BEST PANEL CONFIGUTATION | ||
| Best Panel configuration | 300Wp*9pcs*36V(2700Wp)*2Parallel | 330Wp*9pcs*36V(2970Wp)*2Parallel |
| PHYSICAL | ||
| Products Dimension, D*W*H(mm) | 481mm*313mm*117mm | 481mm*313mm*117mm |
| Packing size, D*W*H(mm) | 543mm*394mm*204mm | 543mm*394mm*204mm |
| Net Weight (kgs) | 9.8KG | 10.5KG |
| G.W. kg | 11KG | 11.7KG |
Detailed Photos
Packing & Delivery
Our Factory
Project Case
Our Company
Sunpal Marketing Department
FAQ
1. who are we? We are based in Anhui, China, start from 2022,sell to North America(20.00%),Western Europe(12.00%),Southern Europe(10.00%),Southeast Asia(9.00%),South America(7.00%),Eastern Europe(7.00%),Central America(6.00%),Eastern Asia(6.00%),Northern Europe(6.00%),Mid East(5.00%),Oceania(4.00%),Africa(4.00%),South Asia(4.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Solar Panel,Solar Inverter,Solar System,Solar Batteries,Energy Storage System 4. why should you buy from us not from other suppliers? With over 15 years of combined solar energy experience, Sunpal Power continues to be part of the renewable energy transition by helping you harvest clean energy at any given location in the world. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,Express Delivery; Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF; Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,PayPal,Western Union,Cash; Language Spoken:Chinese,Spanish,French
