Taijia Hot sale crack detector gauge high sensitivity performance crack detector test crack width gauge

Taijia Hot sale crack detector gauge high sensitivity performance crack detector test crack width gauge

Product Description

Product Description

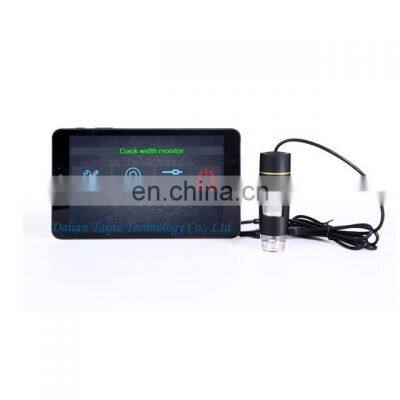

Products DescriptionJY-A10 USB Flat Panel Crack Width MonitorJY-A10 is a USB flat-panel crack width monitor developed by Dalian Taijia Technology Co., Ltd. It can conveniently carry out real-time automatic detection of crack width on the surface of different materials and structures, and real-time observation of crack cracking process and long-time real-time automatic monitoring, so as to realize real-time unattended monitoring and automatic preservation of crack changes. In addition to automatic interpretation, JY-A10 can also interpret the crack width artificially. After field testing and saving the image data of cracks, the cursor can be moved artificially to define the crackboundary at the viewing interface. The scale is displayed on the screen, showing the crack width value. The crack image and scale can be enlarged and reduced appropriatelyParametersInstrument Technical Parameters.1.Technical index 2.Instrument technical parameters 3.Usb link mode 4.Lens Pixel: 1000-fold High Definition Microscope 5.Photo resolution 640x480 6.Measurement range: 0.01-3 cm 7.Interpretation accuracy: 0.01mm 8.The amount of data stored is determined by the memory capacity of the tablet or mobile phone. 9.Functional indicators 10.The camera does not need the user to equip thelighting device, so it has a constant light source device. 11.Automatic interpretation, recording and displaying the judgement value of crack width on the screen; 12.Real-time image display and width interpretation; 13.Automatically monitor the real-time situation of cracks and automatically save the real-time data of cracks.14.The width of cracks can be interpreted manually.15.Engineering information can be input and recorded on the pictures.16.Indicators of the whole machine 17.Seventeen 18.Technical indicators 19.Detection range: 0.01-5.0 mm (with camera bracket up to10 mm) 20.Functional indicators 21.The camera does not need to be equipped with illumination device, so it has a constant lightsource device. 22.Automatic interpretation, directly displaying the judgement value of crack width on the screen; 23.Real-timeimage display and width interpretation; 24.Automatically monitor the real-time situation of cracks and automatically save thereal-time data of cracks. 25.The size of cracks can be interpreted manually.Details ImagesInstrument Operation. Main interface1 Detection function: real-time manual monitoring of crack width 2 monitoring function: automatic detection ofcrack width every three seconds 3 System settings: wireless camera calibration, monitoring time settings, etc. 4 Exit System: Shut Down SoftwareDetection FunctionThe first time we enter the detection function interface, we need to create a new component and click the button "New Component".After clicking the button of New Component, a new dialog box will pop up, in which user information can be input. Finally, remember to click the button of Storage Configuration.Then click the buttonBecause the first use of the device requires calibration before testing, so here we will remind us that we have not calibrated data, need to return to the main interface and click on - > for dataClick the < System Settings > buttonClick < Camera Calibration >button When the 3mm calibration line runs through the screen vertically, click the < calibration >button, and the 3mm calibration line changes from black to green, indicating that the calibration is successful, then click the < save > button.After the calibration is successful, we can return to the main interface and click the button < Detection Function > - > to enterthe detection interface. At this time, we can see that the device will refresh the detection width every other second, so the detection result is changed.We can click the button < Lock Measuring > to stop calculating the lock-in test result.If you want to save the measurement results, click the < save>If you don't want to save the measurements, click button, and you'll start calculating the measurements again. If you feel that the automatic measurement can not be satisfied, you can also manually adjust the measurement line segment.Make sure to click the < manual measurement > button in the automatic measurement state of the equipment (if it can not bemanually measured in the locked state) In manual measurement, two yellow markings appear when the hand touches the screen:stretching and adjusting the position of the line segment.After saving the measurement results, we can click the button in the detection function interface to view the picturesUSB Connection and UsageUSB Connection Automatically Selects USB Camera Points < Determine >Charging Maintenance and MaintenanceIn addition to the use and custody of the instrument, the following should be done: 1. When the instrument is used up, it should be put into the package or instrument box in time to prevent dust from entering the instrument. 2. The instrument should be maintained regularly. After a period of use, it should be wiped and purified, but the assembly relationship between the parts and components of the instrument and the whole machine should not be changed.Related ProductOur facetoryDalian Taijia Technology Co.,Ltd is a high technology company which specializes in supplying and supporting of ultrasonic measurement equipment. prime products include ultrasonic transit-time flow meter, ultrasonic level meter, ultrasonic thickness meter etc. Our products are widely used in water supply and drainage water, petroleum and chemicals, food and pharmaceutical.We have sold product in more than 30 countries, such as America. Italy. India. Korea. Germany. Canada. Australia etc.We thank you for visiting our Web Site and look forward to the opportunity of being of service to you.Contact UsTrade terms1. 18 Month's Warranty.2. Delivery time:3-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.NO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, China 116033E-mail:office at TEL:86-411-39685079Whatsapp:+8615541112235Skype:tmeasurement02web:/
