Hospital Electric Hydraulic Orthopedic Gynecology Neurosurgery Surgical Operating Table

Product Description

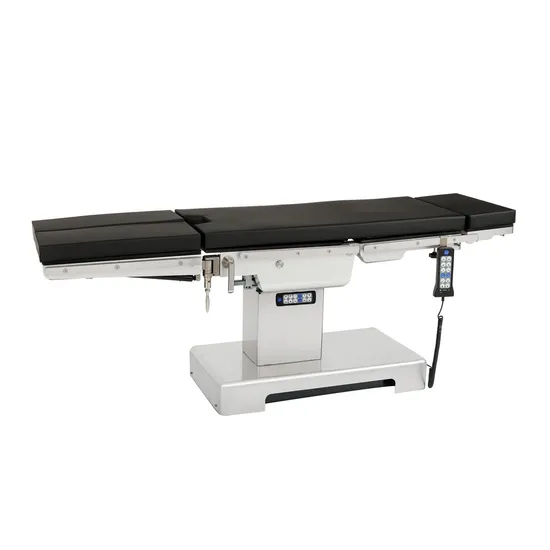

JRKL-D·III ELECTRICAL OR TABLE JRKL-D·III (Economic) is a cost-effective, multi-performance mobile operating table that meets the requirements of different surgeons.
Features
Electro-hydraulic mode of operation is adopted. Two control modes (hand-held remote controller and panel) are available to control various movements. MCU processing is used.
Self-locking function is provided to avoid false triggering.
Quality stainless steel 304 is used for table support, base plate, column shield and rails on both sides of the table, easy for cleaning and sterilization. Console supports the use of cast aluminum parts, never rust.
The mattress is wrapped with imported artificial leather. High-density memory sponge is formed in one piece, with no seam.
Quality carbon steel plate is used for the table top, which is convenient for X-ray photography.
AC and DC can use at the same time.
It has the function of auto-restoration.
The table top can sliding
Electric braking device, convenient for shifting the operating table.
One press to "∧"or "∨".
Standard Accessories
A pair of shoulder and waist support frame, a pair of arm resting frame, a pair of leg support frame, a screen frame.

Mode Table Length mm Table Width mm Height Adjustment mm Tilt(Left) / Tilt(Right) Trendelenburg / Rev-Trend Head board Upwards Head board Downwards Backboard Upwards Backboard Downwards Waist board lifting mm Leg board Upwards Leg board Downwards Leg board Outwards Lumbar upper corner "∧" / Lumbar lower corner "∨" Horizontal and longitudinal movement mm Main Voltage AC Input power VA

JRKL-D·III 2000±100 520±20 (700~1100)±50 ≥18° ≥25°/ ≥35° ≥50° ≥90° ≥70° ≥30° 100±20 ≥10° ≥90° ≥180° ≤150°/ ≤110° 300±30 220V±22V,50Hz±1Hz 400±10%
