High Accuracy Carbon Black Dispersion Tester

Product Description

Product Description

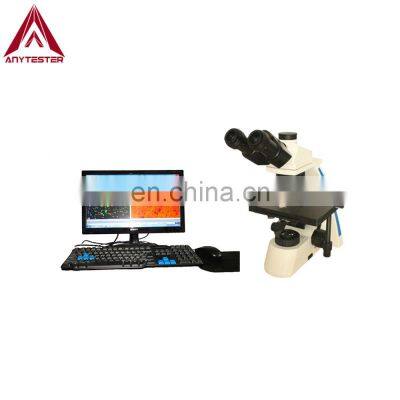

Product DescriptionAT467 Carbon Black Dispersion Tester (old model HY4670) is a system to determine the carbon black dispersion of polyolefin pipe, fittings and compound material. It is also suitable for pigment dispersion test. Test Principle:Small samples of raw-material pellet or material removed from the pipe or fitting are heated and compressed between microscope slides. Alternatively, a microtome slice can be taken.The specimens produced are examined microscopically and the sizes of particles and agglomerates are measured, recorded and graded by comparison with a tabulated grading system. If possible, a rating of the appearance of the dispersion is determined by comparison with photomicrographs.This system consists of microscope, camera and professional software. Based on the measurement and statistics of morphology, size, quantity of carbon black or pigment of the specimens, rapidly grade the carbon black or pigment dispersion and form a test report.SpecificationModelAT467Eyepiece10XObjective lens5X 10X 40X 60XMicroscopeUpright metallurgical microscopeMeasuring range1um~1cmScale ruler1000μm/1μmImage captureSingle acquisition or continuous acquisitionImage processAutomaticMeasuring modeAutomatic or manualImaging resolution2592×1944 (5 mega-pixel)Power supplyAC220V 50HzWeight10kgDetails & Features★ Professional image method to measure, high accuracy;★ With standard scale ruler which provided by metrology institute to ensure the accuracy of the particle size measurement;★ Extensive test parameters including size of carbon black pellet (equivalent diameter, area, perimeter, etc.) and shape information (roundness, rectangularity, length-width ratio, etc.);★ Equipped with professional process program for different products to ensure reliable test result, automatically finish the process from image capture and test result output;★ With flexible data analysis and reporting system, the test reports are saved as Excel form, convenient to save and print;★ Can provide auto-system, improve the degree of automation★ Can provide different capture device to connect with different computerOur CompanyHistorySince 1982 with more than 20 years’ experienceWarrantyTwo Year Warranty for whole productTrainingVideo and user manual for trainingOnsite serviceInstallation and training service is availableTesting serviceFree sample testing before order is availableLead time15 working days lead time for most productPacking & DeliveryPackagingDimensions1400*900*1600mmWeight200kgPackaging Details1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. PaymentPayment TermT/TEXW30% T/T in advance, paid the balance before shipmentFOBCFR(C&F)30% T/T in advance, paid the balance against copy of B/LCIFL/CL/C amount above 50,000 usd, we can accept L/C at sightWest UnionAmount lower than 5000usdWest UnionDelivery Time7~10days after receiving payment for one containerContacting Us
