Bamboo Pellet Machine and Complete Pellet Production Line for Eco-Friendly Fuel

Product Description

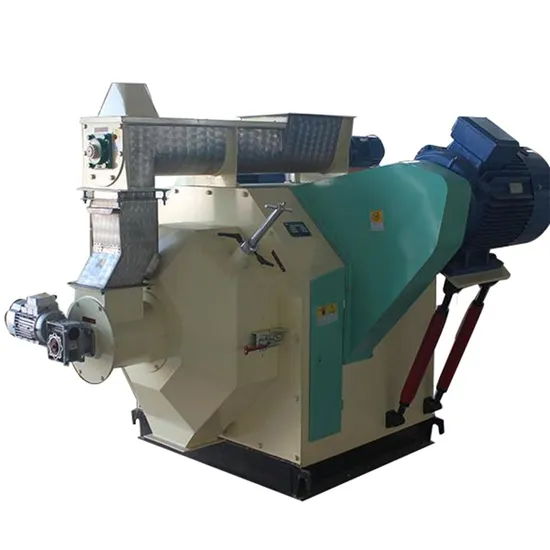

Bamboo Pellet Machine & Pellet Production Line
Application: Bamboo Biomass Pellet Plant
Capacity:0.3t/h - 4.5t/h
Pellet Size:6-12mm
Bamboo pelletizer machine is a new type of biomass fuel pellet machine with high efficiency and low consumption produced by Richi Machinery. Its raw materials are mainly waste bamboo, bamboo boards, bamboo leaves, bamboo powder and bamboo chips. Bamboo pellet mills as the core of bamboo pellet production decides bamboo quality of the whole production line. RICHI bamboo pellets mills is highly recommended for its high adaptability, long life, easy operation and easy maintenance.
why make bamboo into bamboo pellets? Bamboo is a natural choice for biomass energy production. Bamboo is a member of grass family though they are woody in nature. There are here are about 1250 species of bamboo in the world with a height of 10-40 cm. Bamboo can be harvested 4 times in a year and with millions and millions hectares world widely, which means bamboo is potentially a kind of sustainable biomass fuel.
Bamboo plants are a kind of renewable biological resources with multiple uses. How to make full use of the abundant bamboo resources has attracted increasing attention. What's more, because of its high growth rate and easy process, good mechanical properties, such as, low costs, multitude applications, bamboo is a promising renewable resource.
The calorific value of bamboo is 18.3 -19.7 MJ/kg , which is just like or a little bit higher than beech, spruce, and eucalypt, etc. when bamboo are harvested, bamboo chips can be crushed into sawdust and then be molded into pellets and briquettes which can be used for fireplaces and stoves.
Bamboo pellets are made of bamboo stalks, bamboo leaves and recycling bamboo powders after production of other bamboo products, by crushing the bamboo into powder and pressing together into pellets with 6-12mm length. Bamboo pellets deliver extremely high BTU's and low ash content, and they are a reliable, cost-effective and environment-friendly source of energy for heating systems.
For a long time, the research and utilization of bamboo have involved timber use, bamboo shoots, paper-making, and so on. Bamboos are characterized by fast growth and strong adaptability. This means that bamboo will be an ideal sustainable biomass fuel. Echnical Features Of Bamboo Pellet Machine The bamboo pellet machine is widely used for pelletizing of biomass materials, such as wood chips, sawdust, straw, husk, shells, pasture, chrysanthemum, palm leaf and so on; The bamboo pellet mill feeder's especial structure makes materials conveyed evenly. It is specially designed for pelletizing of biomass substances with the density of 0.15-0.65g/cm3; The feeder, conditioner and chute of bamboo pelletizing machine are made of stainless steel with long service life; The bamboo pellet making machine is with magnet and over load protection system which can protect machine well during production; The bamboo pellet forming machine makes gear directly-connecting as the driver and is with quick-release die fixed by clamps,which can increase the output by 15% more than the same type machine with belt-convey; The bearings and oil seals in the main drivers are imported to ensure highly-efficient,stability and credibility. Working Principle Of Bamboo Pellet Machine
The bamboo pellet pressing machine process: crushed bamboo material is fed evenly by the forced feeding device, the centrifugal force generated by the rotation of the ring die, and the action of the feeding scraper. The two pressing areas in the ring die are in the wedge-shaped space formed by the two press rollers and the ring die.
Under the strong squeezing action of the ring die and the press roller, the bamboo material is gradually compacted, squeezed into the die hole of the ring die and shaped in the die hole. Because the extrusion of the material between the die and the roller is continuous, the formed bamboo material is continuously discharged from the die hole in a columnar shape, and then cut into bamboo pellets of the required length by the cutter, and then enters the next process.
Bamboo Pellet Mill Specification

Model Specifications	HKJ25M	HKJ35M	HKJ45M
Main engine power (KW)	22	30×2	55×2
Feeding power (KW)	0.75	0.75	1.5
Forced feeding power (KW)	0.37	0.75	1.5
Output (t/h)	0.1-0.2	0.5-0.8	1.5-2

Wood Pellet Mill projects Wood Pellet business plan Specification of compressed Bamboo PelletsAs clean bio-energy, bamboo pellets have better flow properties. Densification into pellets reduces material wastage and improves ease of transporting and storage. Bamboo Pellet's Specification is as follows:
Density: >1.22kg/m3 Diameter: 6-12mm Length: 6-12mm Calorie: 4500-4800KCAL/KG (18.8-20MJ/kg) Moisture: standard 8.7%, 9.6%max Ash Content: standard 0.9%, 1.1%max Kindly notice that moisture content and pellet size affects the physical and combustion properties of bamboo pellets. The effects of moisture content on bamboo pellet's physical properties include length, diameter, pellet moisture content, unit density and bulk density.
And some researches have proved that when moisture content is about 16% and pellet sizes mixed in the bamboo pellets manufacturing process id the optimum choice.
FAQ
1.How to Make Bamboo Pellets? Complete Bamboo Pellet Production Line process
The bamboo residues transported into bamboo pellet plant will be reduced into proper size, and the processed bamboo dusts will be dried and fed into bamboo pellet mills and be compressed into pellets.
The newly pressed bamboo pellets will be cooled down to become solid and gain strength and at same time will be screened to separate the bamboo pellets and bamboo dust, then packed for storage or transportation.
The whole production process of making bamboo pellets is similar to other biomass pellets production such as sawdust pellets, wood pellets, rice husk pellets and others. The bamboo pellets can be made for small scale household use and large scale commercial use.
Bamboo pellets are small and often look like enlarged capsules. They are shinny with an appearance of a furnished piece of wood. The bamboo biomass pellet production line process usually includes crushing, drying, pelletizing, cooling and bagging, storage.
Complete wood pellet manufacturing process:
2.Why Choose Jastec?
More professional and better understand you. 1. Engineers who can work for machinery overseas (all prefectures).
2. JASTEC overseas service centers are available (Showroom in europe,north america,southeast asia).
3. Overseas third-party support is available (europe,north america,asia).
4. JASTEC engineers have more than 15 years of professional experience in the drying industry, engaged in design,mechanical drawing, electrical automation editing, etc.
5. JASTEC have rich experience in project management and advanced on-site construction technology; We have gained
good performanceand a well-known reputation.
Company Profile
Jastec(Shanghai) Technology Co., Ltd is a professional supplier of food deep processing (include food additive) machinery. It integrates develop, sales, after-sale services as a whole, being a professional supplier for extraction equipment, drying equipment, mixing equipment, grinding equipment and turnkey project for food(include food additive)and agriculture industry etc. Jastec has passed the Occupational health and Safety Management System Conforms to the standard CE,SGS etc. As the members of China National Standardization technique Committee for Industrial Equipment,testified by experience of long-term users, our machine and production line have very high stability and reliability, which have been sold to more than 160 foreign countries like Asian, African,European, American. Jastec have established branch offices and showrooms in Europe and North America. For many years, we`re stick to the principle of "Customers First" taken the initiative to manage customers` demands, to develop and research high-quality, low energy cost but efficiency equipment, set up a perfect after-sale service system, and brought up the concept of" Star service" The Jastec equipment is worth of your trust, Let`s join hands to co-develop a brilliant future in the 21st century full of opportunities! Brand from concentration--Our pursuit is to supply the best cost-effective machines in the world. In this 21-century full of opportunities and challenges, Jastec will provide new equipment and more pragmatic spirit of innovation, cooperate with you and create brilliance!
