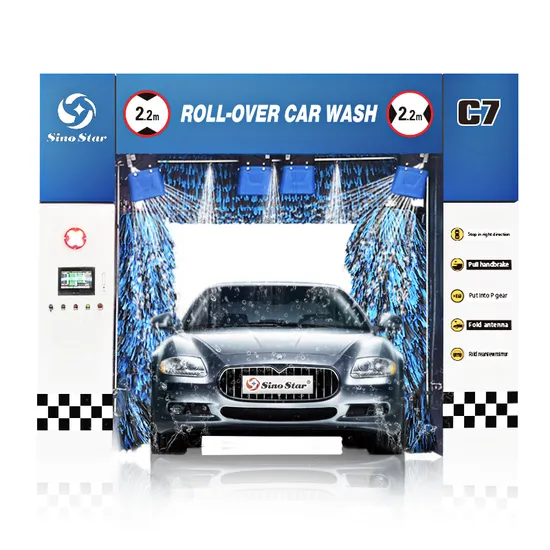

C7 High Pressure 5 Brush Rollover Car Washing Machine

Product Description

Product Description

Technical parameters
Size	Machine Size		L*W*H = 2020*3600*3000mm
	Standard Machine Installation Size		L*W*H = 10000*3700*3200mm
	Max. Car Size		L*W*H = 5500*2000*2000mm
	Car Type		Car / Jeep / minivan with less than 7 seats
Consumption	Foam Consumption		Approx. 20ml/car
	Water Wax Consumption		Approx. 20ml/car
	Water Consumption		Approx. 90L/car
	Electricity Consumption		Approx. 0.5 kwh/car
	Time Consumption		3 min/car of fast wash mode / 8 hours 150 cars
Specifications	Power Supply		AC380V/50Hz/3Ph /12KVA / 28KW, 16smm copper cable
	Water Supply		Dia of Pipe :DN25 Flow ≥100L/min
	Fan Motor Power		4pcs*5.5KW total 22KW
	Air pressure		Pressure 0.6~0.8Mpa / Flow≥0.1m³/min
	Hot dip galvanized steel frame		Zinc coating above 100um
	Electronic control system		PLC FX-3U control system
	Wear-resistant walking system		Taiwan Sheng Bang
	Water pump		Southern vertical stainless steel pump
	Brush		Germany EVA brush

FAQ 1. What size cars C7 automatic rollover car wash machine can apply for ?(Length×width×height) Maximum car wash size: 5500*2100*2100mm (18ft *6.89ft *6.89ft)2. What's time cost for complete fine wash of C7 automatic rollover car wash machine?Complete fine wash with high pressure water spray, wax, foam and air drying totally cost about 3 minutes.3. How about the air drying result?Uses design of air fluid mechanics principle to achieve long-distance high-pressure air cylinder, can reach 90% drying result, thestability with safety are much more better than the profiling air drying in brush wash machine.4. What's the cost for wash one car?For example in our city, water with electricity cost for one car is about 1.5 RMB, chemicals cost about 1 RMB, total 2.5 RMBequals USD0.455. What's power supply required for running Sino Star C7 automatic rollover car wash machine?Sino Star automatic car wash machines require 3 phase industry power supply, in China the standard is 380V/50Hz, if customerrequire different voltage or frequency, we have to customize motors from Siemens Company, and change accordingly fans, low-voltageelectrical cables, control units, etc.6. How to make installation and after sale service for Sino Star?* If there's an exclusive distributor available in your region, you need to buy from distributor and distributor will support yourinstallation, training and after sale service.* If a distributor can't be found in your region, we can dispatch technician to support your installation and training, but thetraveling expense should be on customer's account, this will include visa cost, air tickets cost, hotel with restaurant cost, andcustomer need to pay for technician salary USD100/day.7. How to become a distributor?* We don't have special condition for a conventional distributor without exclusive right.* If you want to apply for exclusive dealership in your country or region, the first step you need to purchase a demo machine toshow customers there, and we need to make an agreement with a yearly MOQ.8. What need to be prepared before machine installation?* 3 phase industry power supply, 25Kw.* Water supply, with a water tank. (2000 liters)* Air compressor with air volume more than 0.67m³/min, could provide stable air pressure more than 0.8Mpa.* Floor cement thickness need to be more than 20cm, if not enough then need to make six concrete columns for mounting supportframes, floor horizontal error less than 3cm.* Scaffold 2 pcs.* Electric Hammer 1 pc, configurator 10, 14, 16 drills each one piece.* Electric Welder 1 pc.* Polisher 1 pc.* Infrared Level 1 pc.* Rough twine 10 meters.* Hand Electric Drill 1 pc.9. What's the warranty of C7 automatic rollover car wash machine?We offer 2 years extended warranty for complete machine, all spare parts included, within warranty period, if any parts breakdown, we will compensate new parts at free charge, but warranty doesn't cover courier expense. Normally we will ask customers keep some spare parts in stock for machine maintenance, and the compensation spare parts will be sent together with next shipment or through a cheaper way but not by DHL.Meanwhile, warranty is not valid in any of below situation:* Human damage or operate the machine not follow instruction or under abnormal circumstance.* Damage due to force majeure, such as wars, floods, earthquakes, lightning, abnormal voltage. 10. What is leading time of Sino Star C7 automatic rollover car wash machine?If customer requires same as China standard three phase industry voltage 380V/50Hz, we can provide fast delivery within 7~10days, if different with China standard, the delivery schedule will prolong 30 days.11. What's the harmonization system code of the C7 automatic rollover car wash machine?HS code: 8424899990
