Cheap Factory Price Construction Equipment Concrete Mixer in High Efficiency
Basic Info.
Model NO.
JZR350 Concrete Mixer
Type
Concrete Mixer
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Rotor Type
Productivity
25m²/h
Feeding Height
1370mm
Vibrating Amplitude
0.8mm
Certification
ISO9001: 2000, SGS
Condition
New
Color
Orange
Power Type
Diesel Engine /Motor/Petrol Engine
Wheel
Two or Four
Delivery Time
20 Days
Keyword
Jzr350 Hydraulic Concrete Mixer
Brand
Topmac Diesel Concrete Mixer
Transport Package
1*20gp Container: 3 Units Concrete Mixer
Specification
Feeding Two Bags of Cement
Trademark
Topmac Concrete Mixer
Origin
China
HS Code
8474310000
Production Capacity
100units/Month Cement Mixer
Packaging & Delivery
Package Size
200.00cm * 230.00cm * 225.00cm
Package Gross Weight
185.000kg
Product Description

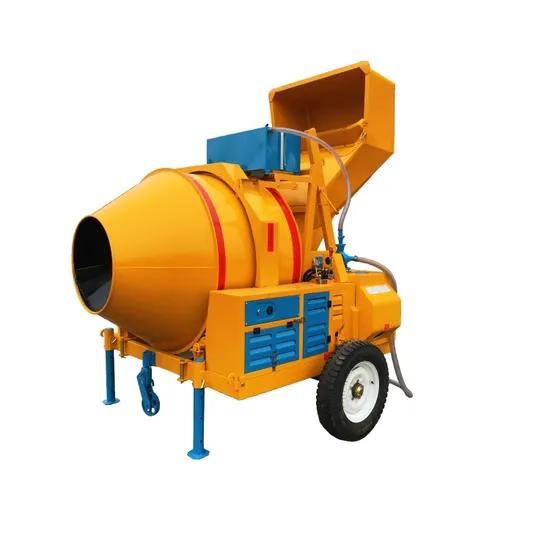

Cheap Factory Price Construction Equipment Concrete Mixer in high efficiencyReverse Drum Concrete Mixer With Hydraulic Tipping Hopper
Model RDCM350-11DH / RDCM500-16DH
Characters:
1. Heavy duty, reversing drum, hydraulic feed concrete mixer,
2. High mixing efficiency, it is enable the mixer to produce up to 40 batches per hour.
3. 14 cubic meters output, standard machine includes water tank with water meter,
4. Hand/electric start, air cooled diesel engine / water cooling diesel engine are optional,
5. Towable chassis with two pneumatic-tired wheels,
6. Jacking system allows wheel removal for storage during long-term use
HS code: 8474310000
RDCM350-11DH concrete mixer Working principle:
The drum rotates in one direction for mixing and in the opposite direction for discharging the concrete. There are two types of blades attached to the inner walls of the drum. One set drags the concrete upwards and toward the center of the mixer when the drum rotates in one direction; The second set of blades pushes the concrete toward the opening when the drum rotates in the other direction. The blades have a spiral arrangement to obtain the desired effect for discharging and mixing.
| MODEL | RDCM350-11DHA (two wheels) | RDCM350-11DHB (four wheels) |
| Power (KW) | 11 | |
| Power source | Diesel engine, Single cylinder, water-cooled with radiator With battery starter | |
| Water Tank | 140L (with Water Pump)(water level indicator) | |
| Unmixed Capacity (Liter) | 560 liter /2 bags cement | |
| Mixed Capacity (Liter) | 350 liter | |
| Mixing time (Sec.) | 46 sec. | |
| Capacity Per Hour (m3/h) | 14 | |
| Dimension (mm) | 3250*2240*3200 | 3250*2240*3200 |
| Weight (Kg) | 1790 | 1840 |
